Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB28K10553 Hi Altitude Orifice Kit Appelez-nous -
1 WS01F02108 Lp Conversion Kit   (Replaces: WB28K10538) Special Order $ 132.60

2 WB28K10530 Spud Orifice Grill Appelez-nous -
3 WG02F01183 Orifice Spud (ng Simmer)   (Replaces: WB28T10159) In-Stock Immediately $ 15.88

3 WS01F01437 Orifice Spud Lp Main   (Replaces: WB28T10117) Special Order $ 4.17

3 WS01F01438 Orifice Spud Simmer Lp   (Replaces: WB28T10118) In-Stock Immediately $ 4.17

3 WG02F01190 Orifice Spud (ng Main)   (Replaces: WB28T10155) Special Order $ 15.88

4 WB28K10529 Spud Orifice Griddle (lp) Appelez-nous -
12 WB24K10050 Harness Burner Box Appelez-nous -
21 WB01K10067 Scr 8 Hd 1/4 - 20 Appelez-nous -
30 WB13K10038 Module Spark 6+0 Appelez-nous -
40 WB28K10518 Tube And Nut Asm Appelez-nous -
41 WB28K10493 Tube And Nut Asm Appelez-nous -
42 WB28K10494 Tube And Nut Asm Appelez-nous -
43 WB28K10522 Tube And Nut Asm Appelez-nous -
44 WB28K10517 Tube And Nut Asm Appelez-nous -
45 WB28K10521 Tube And Nut Asm Appelez-nous -
46 WB28K10519 Tube And Nut Asm Appelez-nous -
47 WB28K10524 Tube And Nut Asm Appelez-nous -
48 WB28K10520 Tube And Nut Asm Appelez-nous -
49 WB28K10523 Tube And Nut Asm Appelez-nous -
51 WB28K10497 Tube And Nut Asm Appelez-nous -
52 WB28K10498 Tube And Nut Asm Appelez-nous -
55 WB28K10525 Tee Swaged Asm Appelez-nous -
56 WB28K10528 Tube Grill And Nut Asm Appelez-nous -
60 WB28T10114 Burner Injet Appelez-nous -
80 WS01F02616 Led Power Supply   (Replaces: WB25K10013) In-Stock Immediately $ 147.83

90 WS01F01723 Led Asm   (Replaces: WB25K10012) Special Order $ 97.21

206 WB1K5 Bottom Oven Screw Appelez-nous -
216 WB28K10665 Tube Cooktop Supply Asm Appelez-nous -
283 WB2K38 Clip Wire Appelez-nous -
304 WB02K10192 Bracket Injet Appelez-nous -
306 WB21K10125 Valve Dual Appelez-nous -
308 WB21K10126 Switch Valve Asm Appelez-nous -
320 WB1K10 Grommet Handle Appelez-nous -
321 WB28K10526 Pipe Manifold Asm Lf Appelez-nous -
322 WS01F02728 Transformer   (Replaces: WB27K10298) Special Order $ 188.64

323 WB28K10527 Pipe Manifold Asm Rt Appelez-nous -
336 WB2X7066 Clip Wire Appelez-nous -
344 WS01F03661 Valve Safety   (Replaces: WB19K10033) Special Order $ 113.30

800 WB01K10042 Scr 8-18 Ab Ihw 3/8 Sn Appelez-nous -
999 31-10693 Pm Conversion Steps Appelez-nous -
999 31-10694 Pm Install Anti-tip Brkt Appelez-nous -
999 31-10695 Pm Attention Installer Appelez-nous -
999 WG02A00297 Lubricant Cleaner   (Replaces: WB02T10303) Special Order $ 77.35

999 WG02A00015 Cleaner-ss   (Replaces: WB02T10111) Special Order $ 23.22

999 31-14936 Pm Mini Manual Appelez-nous -
999 49-85117-4 Pm Owners Manual Appelez-nous -
1200 WB18K10047 Harness Hv Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

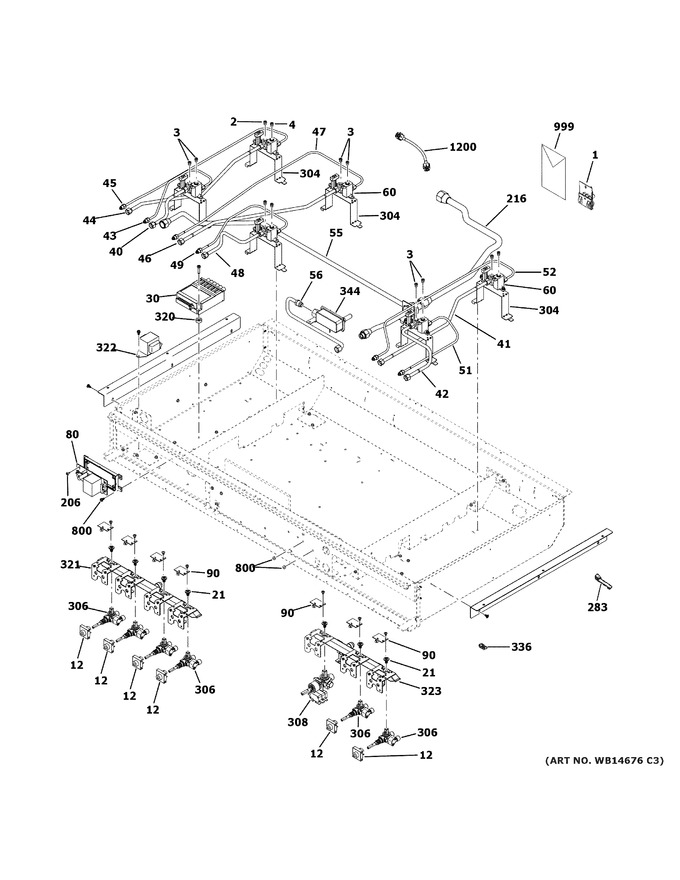

Diagram for ZDP486NRN1SS
