Diagram # Part Number Description Series Availability Ships Price Add to Cart
5 WB24X26719 Switch-led Asm Appelez-nous -
8 WS01A01212 Screw 8-32   (Replaces: WB01K10002) Special Order $ 88.13

66 WB57K10134 Glass Display Appelez-nous -
67 WB02K10213 Bracket Control Appelez-nous -
68 WB25K10014 Led Board Appelez-nous -
69 WB02K10214 Bracket Led Appelez-nous -
70 WS01F01298 Encoder Asm   (Replaces: WB24K10048) In-Stock Immediately $ 576.69

105 WB27K10457 Control Display Module Appelez-nous -
280 WB36K10980 Control Panel & Rail Asm Appelez-nous -
282 WB02K10211 Bracket Control Panel Appelez-nous -
288 WB03K10359 Knob Asm Appelez-nous -
289 WB03K10257 Knob Asm Grill Appelez-nous -
291 WS01L06126 Knob Asm Oven Tmst   (Replaces: WB03K10259) Special Order $ 87.93

372 WB07K10299 Bezel Knob Appelez-nous -
374 WB02K10216 Lens Bezel Appelez-nous -
376 WB03K10255 Bezel Oven Asm Special Order $ 103.05

378 WB02K10217 Bushing Bezel Appelez-nous -
800 WB01K10042 Scr 8-18 Ab Ihw 3/8 Sn Appelez-nous -
996 WB18T10425 Harness Sail Jumper Appelez-nous -
1000 WB01K10086 Scr 8-18 Ab Trp 3/8 Ss Appelez-nous -
1700 WB24K10064 Harness Serial Dual Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

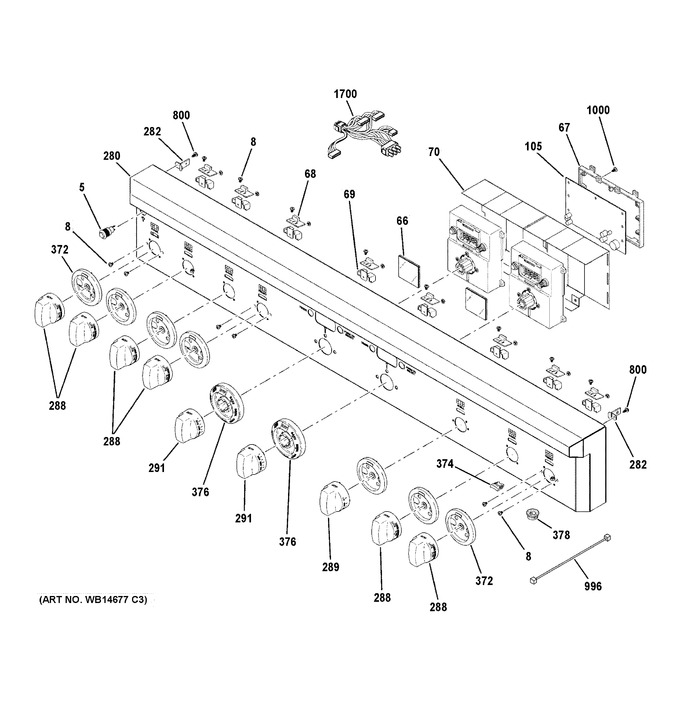

Diagram for ZDP486NRN1SS
