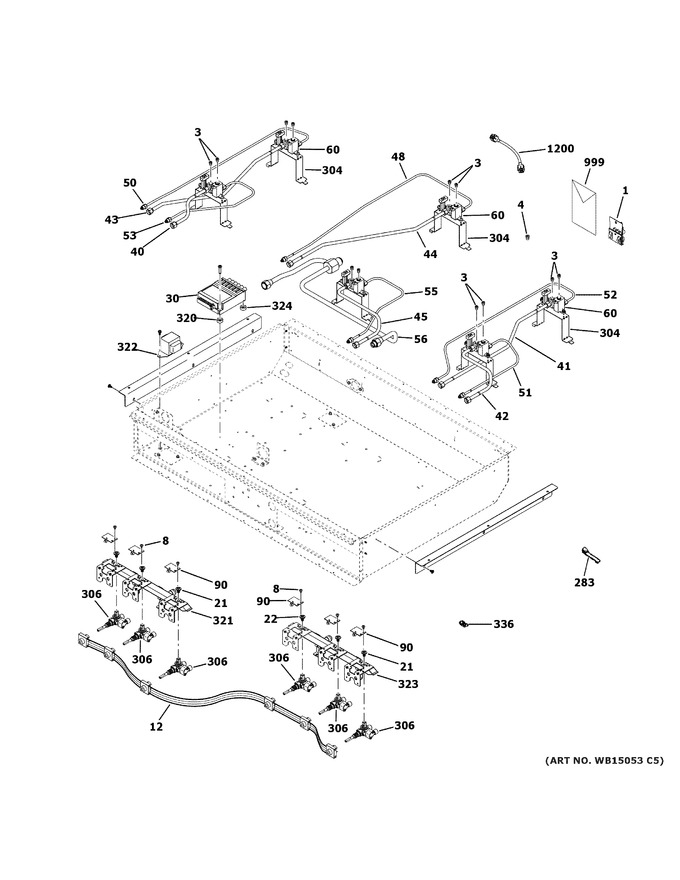

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB28K10553		Hi Altitude Orifice Kit		Appelez-nous	-
1	WB28K10639		Ng Conversion Kit		Appelez-nous	-
1	WB28K10640		Lp Conversion Kit		Appelez-nous	-
3	WG02F01190		Orifice Spud (ng Main)   (Replaces: WB28T10155)				$ 15.88
3	WS01F01437		Orifice Spud Lp Main   (Replaces: WB28T10117)				$ 4.17
3	WS01F01438		Orifice Spud Simmer Lp   (Replaces: WB28T10118)			Immediately	$ 4.17
3	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 15.88
4	WB28K10656		Orifice Spud Broil Lp Main		Appelez-nous	-
4	WB28K10659		Orifice Spud Broil Ng Main		Appelez-nous	-
4	WB28K10833		Spud Bake Orifice		Appelez-nous	-
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
12	WB24K10086		Harness Burner Box		Appelez-nous	-
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
22	WB01K10109		Scr 8 Hd 1/4-20		Appelez-nous	-
30	WB13X27503		Module Spark		Appelez-nous	-
40	WB28K10492		Tube And Nut Asm		Appelez-nous	-
41	WB28K10493		Tube And Nut Asm		Appelez-nous	-
42	WB28K10494		Tube And Nut Asm		Appelez-nous	-
43	WB28K10495		Tube And Nut Asm		Appelez-nous	-
44	WB28K10543		Tube And Nut Asm		Appelez-nous	-
45	WB28K10544		Tube And Nut Asm		Appelez-nous	-
48	WB28K10545		Tube And Nut Asm		Appelez-nous	-
50	WB28K10496		Tube And Nut Asm		Appelez-nous	-
51	WB28K10497		Tube And Nut Asm		Appelez-nous	-
52	WB28K10498		Tube And Nut Asm		Appelez-nous	-
53	WB28K10499		Tube And Nut Asm		Appelez-nous	-
55	WB28K10546		Tube And Nut Asm		Appelez-nous	-
56	WB28K10547		Tee Swaged Asm		Appelez-nous	-
60	WB28T10114		Burner Injet		Appelez-nous	-
90	WS01F01723		Led Asm   (Replaces: WB25K10012)				$ 97.21
283	WS01A01082		Clip Cable   (Replaces: WB2K31)				$ 4.20
304	WB02K10192		Bracket Injet		Appelez-nous	-
306	WB21K10165		Valve Dual		Appelez-nous	-
320	WB1K10		Grommet Handle		Appelez-nous	-
321	WB28K10503		Pipe Manifold Asm		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 188.64
323	WB28K10527		Pipe Manifold Asm Rt		Appelez-nous	-
324	WB01K10020		Spacer-handle		Appelez-nous	-
336	WB2X7066		Clip Wire		Appelez-nous	-
999	31-10694		Pm Install Anti-tip Brkt		Appelez-nous	-
999	31-11125		Pm Install Instructions		Appelez-nous	-
999	31-10698		Pm Install Instructions		Appelez-nous	-
999	31-10766		Pm Install Instructions		Appelez-nous	-
999	31-10695		Pm Attention Installer		Appelez-nous	-
1200	WB18K10050		Harness Hv		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
