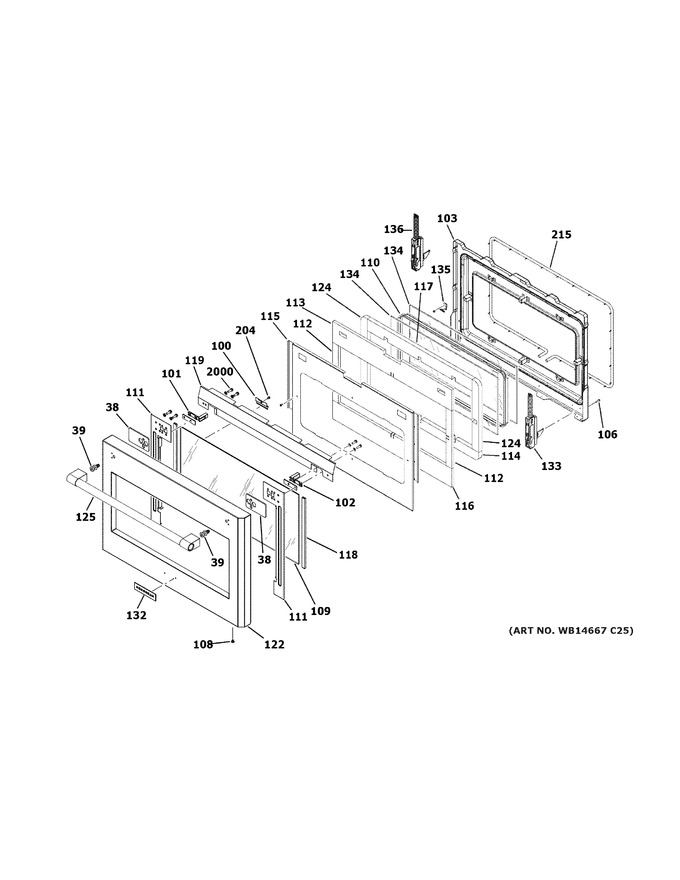

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38	WB02X31822		Pad End Cap		Appelez-nous	-
39	WR01A01801		Door Handle Fastener   (Replaces: WR01X11007)			Immediately	$ 12.71
100	WB02K10218		Bracket Glass		Appelez-nous	-
101	WB34X31807		Bracket Handle Left		Appelez-nous	-
102	WB34X31805		Bracket Handle Right		Appelez-nous	-
103	WS01L00653		Liner Oven Door Asm   (Replaces: WB55K10062)				$ 85.42
106	WB01K10089		Scr 10-32 Tr T 7/8 S		Appelez-nous	-
108	WB01X26995		Scr 8-18 Ab X 5/16s		Appelez-nous	-
109	WB57K10135		Glass Door 27"		Appelez-nous	-
110	WB34K10109		Spacer Window		Appelez-nous	-
111	WB34X31808		Support Outer Glass Left		Appelez-nous	-
111	WB34X31806		Support Outer Glass Right		Appelez-nous	-
112	WB35K10129		Ft Insul Door Side		Appelez-nous	-
113	WB35K10130		Ft Insul Door Top 27"		Appelez-nous	-
114	WB35K10134		Rr Insul Door Btm 27"		Appelez-nous	-
115	WB55K10059		Guard Insulation		Appelez-nous	-
116	WB35K10131		Ft Insul Door Btm 27"		Appelez-nous	-
117	WB35K10133		Rr Insul Door Top 27"		Appelez-nous	-
118	WB04K10028		Pad Door		Appelez-nous	-
119	WB02K10260		Heat Deflector		Appelez-nous	-
122	WB56X37966		Stainless Steel Oven Door Panel 36"		Appelez-nous	-
122	WB56X35068		Stainless Steel Oven Door Panel		Appelez-nous	-
124	WB35K10132		Rr Insul Door Side		Appelez-nous	-
125	WB15X35071		36" Handle And End Cap		Appelez-nous	-
132	WB02X35125		Badge Monogram		Appelez-nous	-
133	WB10K10017		Hinge Door Rt(36)		Appelez-nous	-
134	WB57K10151		Glass Door		Appelez-nous	-
135	WB02K10222		Clip Window		Appelez-nous	-
136	WS01L00234		Hinge Door Lt(36)   (Replaces: WB10K10018)			Immediately	$ 67.89
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
215	WB02K10221		Gasket Door 27"		Appelez-nous	-
2000	WB01K10100		Scr 10-32 Trp 1/2		Appelez-nous	-
