SELECT A DIAGRAM

Doors


Freezer Section


Fresh Food Section


Fresh Food Shelves


Ice Maker


Lokring Connectors


Machine Compartment

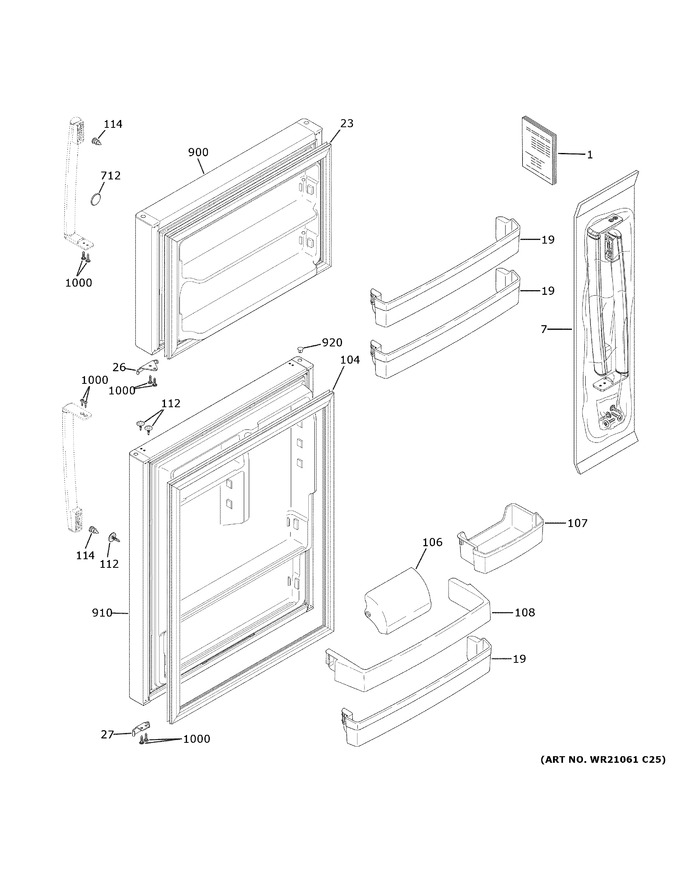

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1000431		Pm Mini Manual And Wiring		Appelez-nous	-
7	WR12X31083		Stainless Steel Handle Pack		Appelez-nous	-
19	WR71X31155		Can Shelf 19		Appelez-nous	-
23	WR14X31123		Dorian Gray Freezer Door Gasket 19		Appelez-nous	-
26	WR02X28290		Freezer Door Stop Dorian Gray		Appelez-nous	-
27	WR02X28286		Refrigerator Door Stop Dorian Gray		Appelez-nous	-
104	WR14X31101		Dorian Gray Fresh Food Door Gasket 19		Appelez-nous	-
106	WR71X31194		Dairy Door 30		Appelez-nous	-
107	WR71X31200		Modular Door Bin 30		Appelez-nous	-
108	WR71X31152		Fresh Food Door Shelf 19		Appelez-nous	-
112	WR02X21242		Plug Door Rvsbl				$ 1.15
114	WR01X28657		Refrigerator Handle Mount		Appelez-nous	-
712	WR02X31306		Chrome Ge Badge		Appelez-nous	-
900	WR78X31161		Stainless Freezer Door 19		Appelez-nous	-
910	WR78X31199		Stainless Fresh Food Door 19		Appelez-nous	-
920	WR02X21663		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
