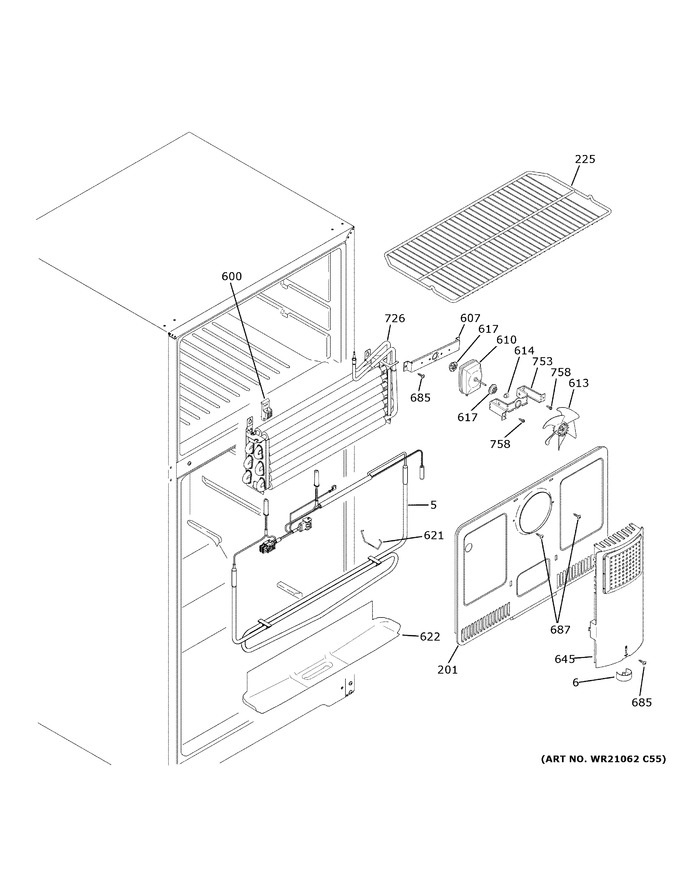

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WR55X31113 | Defrost Heater And Harness |
|
- | |||||
| 6 | WR02X31092 | Adjustable Damper |
|
- | |||||
| 6 | WR02X31737 | Fixed Damper |
|
- | |||||
| 6 | WR02X31740 | Fixed Damper |
|
- | |||||
| 201 | WR17X31220 | Evaporator Cover 19 |
|
- | |||||
| 225 | WR71X31117 | Freezer Wire Shelf 19 |
|
- | |||||
| 600 | WR02X31289 | Thermal Fuse Clip |
|
- | |||||
| 607 | WR02X31292 | Rear Evaporator Fan Bracket |
|
- | |||||
| 610 | WR60X31122 | Evaporator Fan Motor |
|
- | |||||
| 613 | WG03F10250 | Blade Evap Fan Asm (Replaces: WR60X10204) |
|
Immediately | $ 11.12 | ||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 617 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 621 | WR02X31293 | Evaporator Clip |
|
- | |||||
| 622 | WR17X31136 | Drain Trough 22 |
|
- | |||||
| 645 | WR17X31517 | Air Tower |
|
- | |||||
| 685 | WR02X29370 | Screw 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 687 | WR01X10589 | Scr 8-15 Ab Ihxw 1/2 S |
|
- | |||||
| 726 | WR87X32220 | Evaporator |
|
- | |||||
| 753 | WR02X28726 | Evaporator Fan Front Bracket |
|
- | |||||
| 758 | WG03A01146 | Scr 8-32 Tt Hxw 3/8 S (Replaces: WR01X10860) |
|
$ 4.20 |
