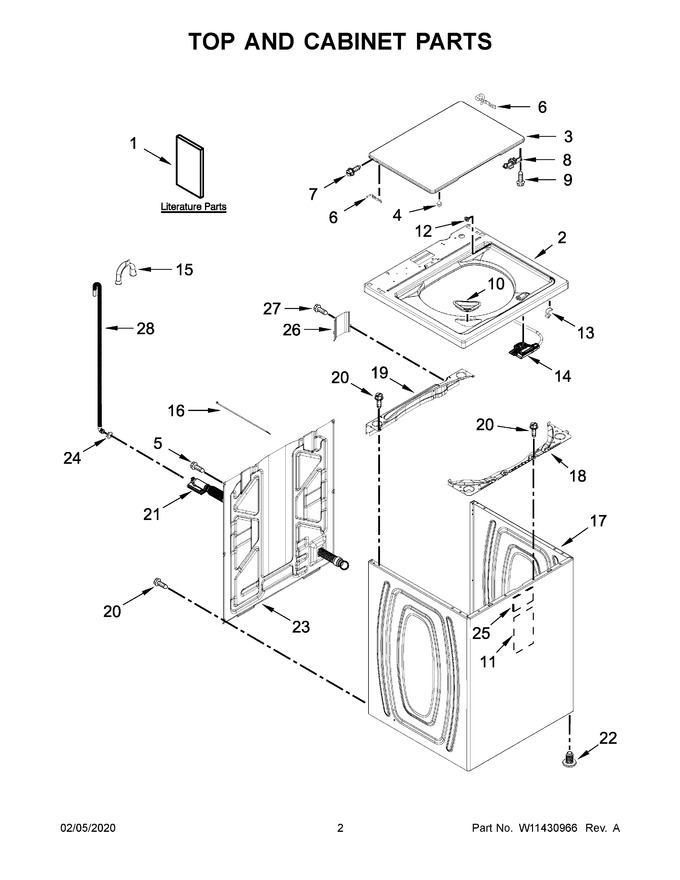

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11354658 | Owners Manual |
|
- | |||||
| 2 | W10768768 | Top (white) |
|
Immediately | $ 149.99 | ||||
| 3 | W10860912 | Lid (white) (Replaces: W10027624) |
|
$ 369.59 | |||||
| 4 | WP9724509 | Bumper (Replaces: 9724509) |
|
Immediately | $ 7.93 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 6 | WP91770 | Hinge, Lid (left) (Replaces: 91770) |
|
$ 27.45 | |||||
| 7 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 7.19 | ||||
| 8 | W10837741 | Strike, Lid Lock (white) (Replaces: W10714899) |
|
Immediately | $ 29.66 | ||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.19 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 7.96 | ||||
| 11 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 22.17 | |||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
Immediately | $ 7.63 | ||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.32 | |||||
| 14 | W11307244 | Latch, Lid Lock Assembly (Replaces: W10682535) |
|
Immediately | $ 173.37 | ||||
| 15 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 16 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 17 | W10676680 | Cabinet (white) |
|
$ 387.49 | |||||
| 18 | W11695476 | Channel, Top Front (white) (Replaces: W11172902) |
|
$ 75.99 | |||||
| 19 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 98.93 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.26 | |||||
| 21 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 34.08 | ||||
| 22 | WPW10687506 | Foot Assembly, Leveling (Replaces: W10687506) |
|
Immediately | $ 24.83 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W10250884) |
|
Immediately | $ 312.11 | ||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 25 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 7.98 | ||||
| 26 | W10648853 | Cover, Harness |
|
- | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 28 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 1A | W11414526 | Quick Start Guide |
|
- | |||||
| 1B | W11409867 | Energy Guide |
|
- | |||||
| 1C | W10783949 | Quick Start Guide |
|
- | |||||
| 6A | WP54583 | Hinge, Lid (right) (Replaces: 54583) |
|
$ 29.56 |
