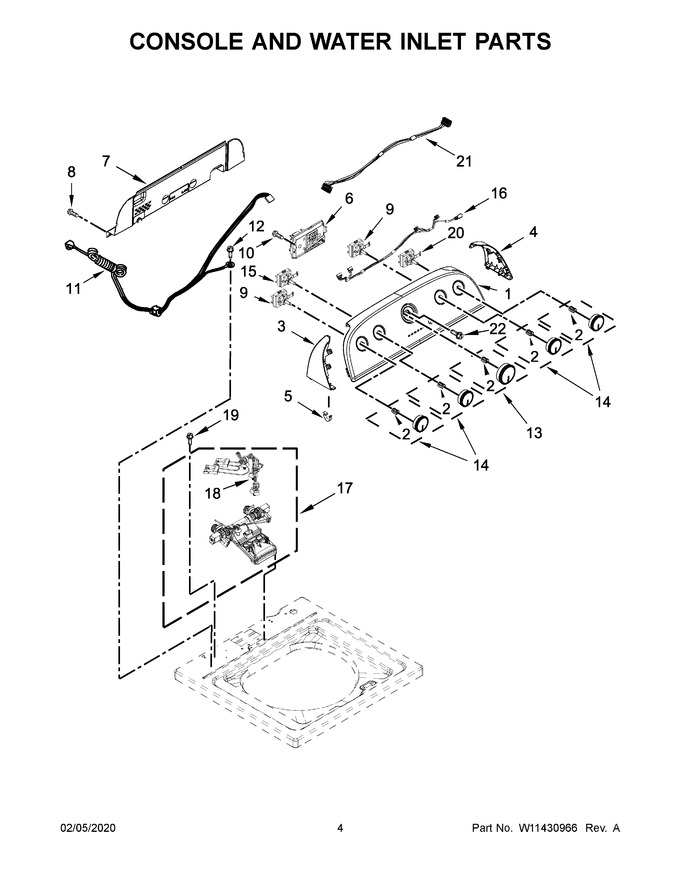

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11404242 | Panel, Console |
|
$ 427.31 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10520782 | End Cap (l.h.) (white) (Replaces: W10520782) |
|
$ 64.69 | |||||
| 4 | WPW10520780 | End Cap (r.h.) (white) (Replaces: W10520780) |
|
$ 64.34 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11458145 | Control Unit Assembly, Machine And Motor (Replaces: W11320233) |
|
Immediately | $ 352.59 | ||||
| 7 | W10641340 | Panel, Console Rear Cover |
|
$ 211.44 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 9 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 130.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10770866) |
|
$ 45.78 | |||||
| 14 | W11176265 | Knob, Control (white/metallic) (Replaces: W10770858) |
|
$ 52.40 | |||||
| 15 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 117.42 | ||||
| 16 | W11211519 | Harness, Upper (Replaces: W10694680) |
|
$ 184.80 | |||||
| 17 | W11038689 | Inlet Assembly, Water (Replaces: W10869800) |
|
Immediately | $ 81.37 | ||||
| 18 | W10868094 | Harness, Valve |
|
$ 186.11 | |||||
| 19 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 20 | W10701085 | Switch, Rotary Encoder (2 Position) |
|
- | |||||
| 21 | W10786100 | Harness, Jumper |
|
$ 189.98 | |||||
| 22 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 |
