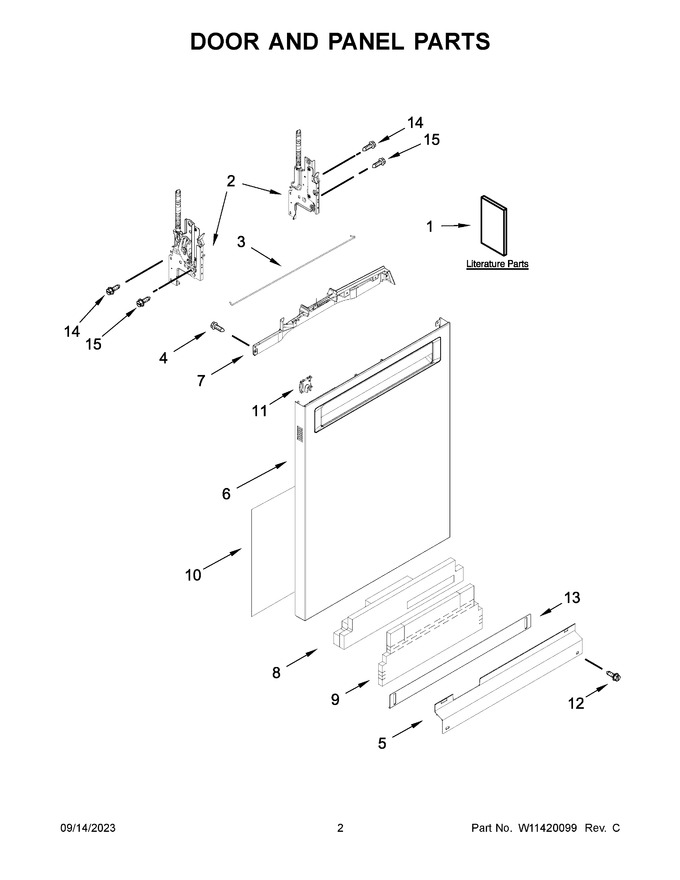

02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11323304		Owners Manual		Appelez-nous	-
2	W11766666		Arm, Hinge (left Hand)   (Replaces: W10920232)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.55
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11416785		Panel, Front (includes Item 11) (stainless)   (Replaces: W11233313)				$ 483.30
7	W11662067		Cover, Handle Pocket   (Replaces: W10858705)				$ 82.01
8	W11573700		Insulation, Multi-layer   (Replaces: W10919858)			Immediately	$ 44.89
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 23.86
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw, Black   (Replaces: W11170267)			Immediately	$ 15.43
13	W11579528		Toe Panel (black)   (Replaces: W11108991)			Immediately	$ 32.90
14	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
15	W11676450		Screw   (Replaces: 3400000)				$ 14.76
1A	W11404477		Energy Guide		Appelez-nous	-
1B	W11366142		Tech Sheet		Appelez-nous	-
2A	W11766665		Arm, Hinge (right Hand)   (Replaces: W10920230)			Immediately	$ 59.16
6A	W11416786		Panel, Front (includes Item 11) (black Stainless)   (Replaces: W11233314)				$ 591.22
