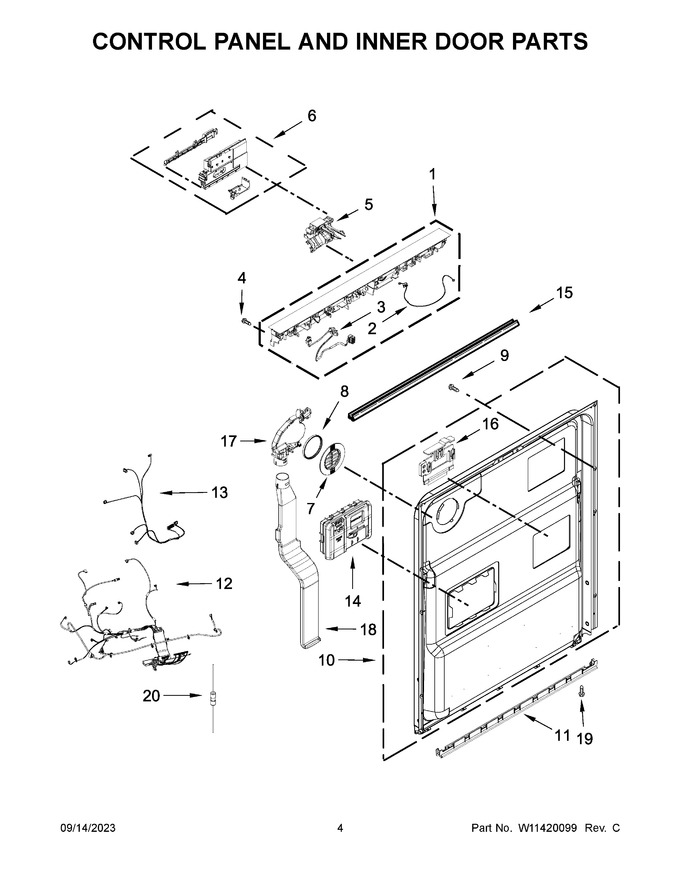

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11416459 | Console Assembly (includes Insert) (black) (Replaces: W11106346) |
|
Immediately | $ 322.02 | ||||
| 2 | W11084876 | Jumper, Door |
|
$ 162.46 | |||||
| 3 | W10889948 | Jumper, Ui |
|
$ 20.98 | |||||
| 4 | WPW10213953 | Screw (long) (Replaces: W10711884) |
|
Immediately | $ 7.55 | ||||
| 5 | W11412299 | Latch Assembly (includes Switch) (Replaces: W11091934) |
|
Immediately | $ 29.70 | ||||
| 6 | W11410061 | Control, Electronic (Replaces: W11351659) |
|
$ 360.16 | |||||
| 7 | W11545290 | Bezel, Vent (also Order Gasket) (Replaces: W11025634) |
|
Immediately | $ 14.87 | ||||
| 8 | W11545539 | Gasket, Vent (Replaces: W11184028) |
|
Immediately | $ 9.69 | ||||
| 9 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 10 | W11559689 | Inner Door Assembly (Replaces: W11098822) |
|
$ 393.05 | |||||
| 11 | W11664713 | Seal, Door Bottom (Replaces: W11454757) |
|
Immediately | $ 59.49 | ||||
| 12 | W11330869 | Wiring Harness, Main (includes Thermostat & Fuse) |
|
$ 323.00 | |||||
| 13 | W11678803 | Wiring Harness, Inner Door (Replaces: W11084867) |
|
Immediately | $ 22.40 | ||||
| 14 | W11412300 | Dispenser Assembly (Replaces: W11092649) |
|
Immediately | $ 172.65 | ||||
| 15 | W11213719 | Seal, Console/door (Replaces: W11265187) |
|
Immediately | $ 172.77 | ||||
| 16 | W11088985 | Hanger, Control |
|
$ 34.23 | |||||
| 17 | W11414073 | Vent Assembly (includes Fan) (also Order Gasket) (Replaces: W11038720) |
|
Immediately | $ 137.95 | ||||
| 18 | W11038734 | Duct, Vent |
|
$ 86.22 | |||||
| 19 | W11627527 | Screw (Replaces: W11258418) |
|
Immediately | $ 14.72 | ||||
| 20 | W11397505 | Fuse, In-line |
|
$ 115.82 |
