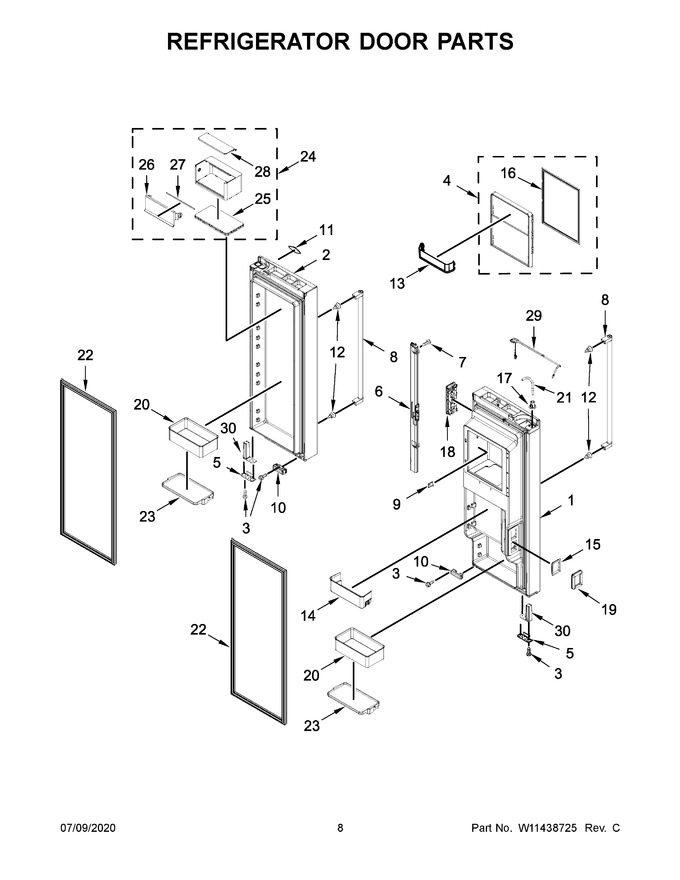

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11444124 | Door, Left (stainless (also Order Item # 18)) (Replaces: W11401193) |
|
$ 1,033.12 | |||||
| 2 | W10849508 | Door, Right (stainless) (Replaces: W10798250) |
|
$ 1,115.04 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.18 | |||||
| 4 | W11594928 | Assembly, Ice Door (Replaces: W10830493) |
|
$ 159.44 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 68.50 | ||||
| 6 | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 127.61 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W11339136) |
|
Immediately | $ 160.21 | ||||
| 9 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 32.99 | |||||
| 10 | W10798308 | Bumper, Door (grey) |
|
$ 24.27 | |||||
| 11 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 13 | W10887799 | Trivet, Ice Compartment Door (Replaces: W10795606) |
|
Immediately | $ 95.99 | ||||
| 14 | W10887800 | Bin, Door (medium) (Replaces: W10806697) |
|
Immediately | $ 78.13 | ||||
| 15 | W10720065 | Retainer, Door Duct |
|
$ 47.67 | |||||
| 16 | W11625084 | Gasket, Ice Door (Replaces: W10853439) |
|
$ 61.86 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11330486 | Assembly, User Interface (Replaces: W11227903) |
|
Immediately | $ 290.75 | ||||
| 19 | W10720073 | Gasket, Cooling Duct |
|
$ 48.90 | |||||
| 20 | W10887801 | Bin, Door (gallon) (Replaces: W10776705) |
|
$ 112.01 | |||||
| 21 | W11518276 | Tube, Water (Replaces: W11391308) |
|
$ 83.51 | |||||
| 22 | W10917313 | Gasket, Door (grey) |
|
Immediately | $ 295.11 | ||||
| 23 | W11733335 | Trim, Gallon (Replaces: W10823512) |
|
$ 284.09 | |||||
| 24 | W10887802 | Assembly, Utility Bin (Replaces: W10795526) |
|
$ 140.32 | |||||
| 25 | W10795523 | Base, Utility Bin |
|
- | |||||
| 26 | W10803630 | Door, Utility Bin (includes Gasket) |
|
$ 86.43 | |||||
| 27 | W10795525 | Gasket, Utility Bin |
|
$ 38.47 | |||||
| 28 | W10795524 | Lid, Utility Bin |
|
$ 155.96 | |||||
| 29 | W11596134 | Assembly, Fill Tube (Replaces: W11401681) |
|
$ 87.80 | |||||
| 30 | W11179355 | Closer, Door (left Hand) (Replaces: W10872968) |
|
$ 23.45 | |||||
| 30A | W11189598 | Closer, Door (right Hand) (Replaces: W10872969) |
|
$ 23.45 |
