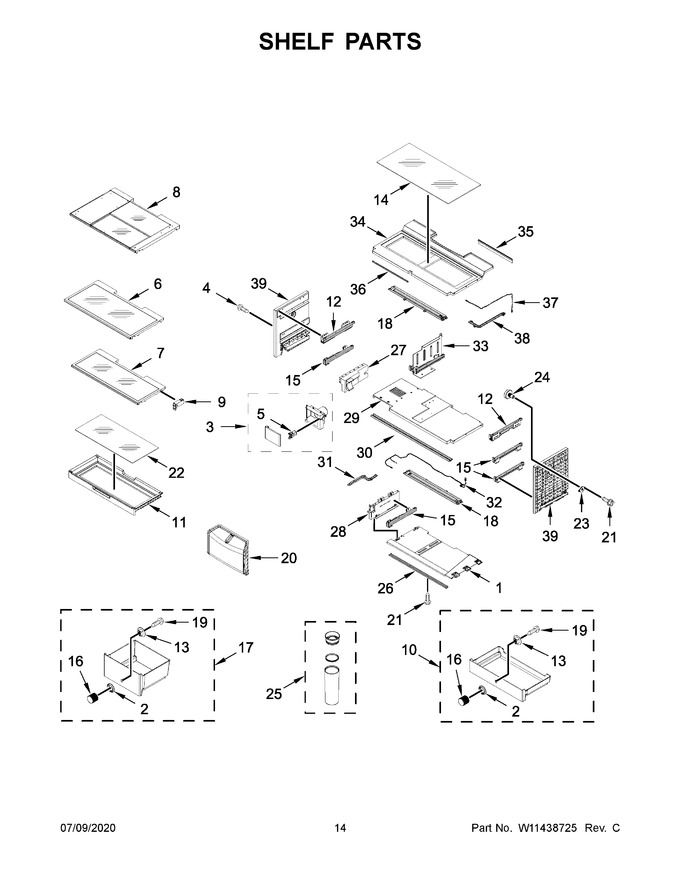

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11084906		Base, Pantry   (Replaces: W10794287)		Appelez-nous	-
2	W10696184		Ring, Handle		Appelez-nous	-
3	W11347067		Assembly, Filter Door				$ 217.80
4	W10847999		Screw				$ 13.47
5	WP2223877		Latch, Push   (Replaces: 2223877)				$ 120.84
6	W10794689		Assembly, 15" Full Shelf		Appelez-nous	-
7	W11284509		Assembly, 12" Full Shelf   (Replaces: W11116718)				$ 320.94
8	W10837198		Assembly, Tuck Shelf		Appelez-nous	-
9	W10753430		Assembly, Block (front Left/back Right)				$ 26.54
10	W11115323		Pan, Pantry   (Replaces: W10898655)				$ 275.69
11	W11387033		Assembly, Platter Shelf   (Replaces: W11082109)			Immediately	$ 218.11
12	W10843718		Glide, Platter (left Hand)				$ 170.60
13	W10663641		Spacer, Handle				$ 27.58
14	W10887837		Glass, Crisper Cover   (Replaces: W10804533)			Immediately	$ 242.34
15	W10866165		Glide, Crisper (left Hand)		Appelez-nous	-
16	W10903881		Handle		Appelez-nous	-
17	W11115324		Assembly, Crisper Pan   (Replaces: W10918349)			Immediately	$ 195.85
18	W11401419		Assembly, Light   (Replaces: W10901221)				$ 190.79
19	W10903879		Screw		Appelez-nous	-
20	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
21	W10847999		Screw   (Replaces: W10804977)				$ 13.47
22	W10906480		Glass, Platter   (Replaces: W10897364)		Appelez-nous	-
23	W10840918		Flange, Side Support				$ 93.47
24	W10840922		Knob, Side Support		Appelez-nous	-
25	W10882409		Assembly, Herb Storage (includes Lid And Gasket)   (Replaces: W10795580)				$ 52.09
26	W10758900		Bar, Pantry Support				$ 115.46
27	W11084829		Insulation, Filter Housing   (Replaces: W10792132)		Appelez-nous	-
28	W10794289		Support, Pantry		Appelez-nous	-
29	W11084907		Cover, Pantry   (Replaces: W10794259)		Appelez-nous	-
30	W10758351		Bar, Support		Appelez-nous	-
31	W10834719		Cover, Wiring Harness		Appelez-nous	-
32	W11744510		Assembly, Pantry Wire (includes Thermistor)   (Replaces: W10779301)				$ 114.44
33	W10794248		Assembly, Center Support				$ 270.93
34	W11084909		Frame, Crisper Cover   (Replaces: W10794241)				$ 215.36
35	W10794336		Gasket, Crisper Cover (rear)		Appelez-nous	-
36	W10794242		Gasket, Crisper Cover (front)				$ 132.33
37	W10835866		Jumper, Crisper Led		Appelez-nous	-
38	W10854845		Cover, Wiring Harness		Appelez-nous	-
39	W10794252		Support, Side (left Hand)		Appelez-nous	-
12A	W10843719		Glide, Platter (right Hand)				$ 275.84
15A	W10866168		Glide, Crisper (right Hand)				$ 156.33
39A	W10794258		Support, Side (right Hand)		Appelez-nous	-
9A	W10753431		Assembly, Block (front Right/back Left)				$ 26.61
