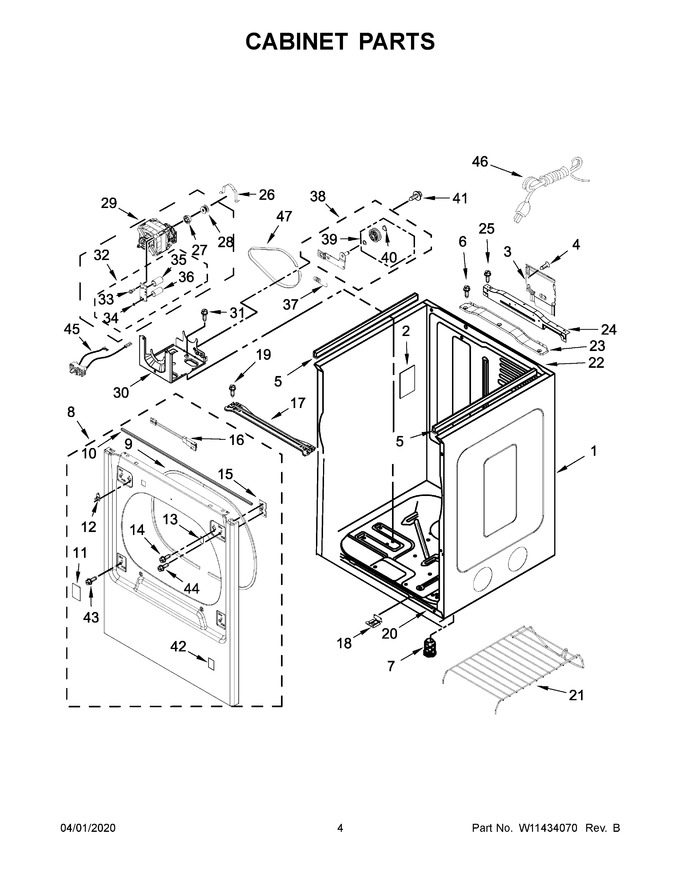

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10681830 | Panel, Side (chrome Shadow (without Cutout)) |
|
$ 350.56 | |||||
| 2 | W11690850 | Panel, Dampening (Replaces: W11313127) |
|
$ 27.17 | |||||
| 3 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 4 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 5 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 6 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 7 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 8 | W10875891 | Panel, Front (chrome Shadow) (Replaces: W10861062) |
|
$ 356.12 | |||||
| 9 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 10 | W11406199 | Seal, Foam (Replaces: W11261179) |
|
$ 65.25 | |||||
| 11 | W10596965 | Plug, Hinge (chrome Shadow) |
|
- | |||||
| 12 | W11163826 | Strike (Replaces: W10778071) |
|
$ 26.61 | |||||
| 13 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 29.69 | |||||
| 14 | 6-920119 | Screw |
|
- | |||||
| 15 | W10596959 | Bracket, Hinge |
|
$ 20.00 | |||||
| 16 | W11036551 | Switch, Door (Replaces: W10459026) |
|
Immediately | $ 74.25 | ||||
| 17 | W10722502 | Brace, Cab And Seal Assembly |
|
- | |||||
| 18 | W10632347 | Spacer Bracket, Lower |
|
- | |||||
| 19 | W10891954 | Screw (Replaces: 8281212) |
|
- | |||||
| 20 | W10613683 | Base, Cabinet |
|
$ 201.57 | |||||
| 21 | W10693998 | Dry Rack |
|
- | |||||
| 22 | W10824896 | Panel, Rear |
|
$ 311.31 | |||||
| 23 | W10651902 | Bulkhead Bracket, Rear Panel |
|
- | |||||
| 24 | W10622391 | Bracket, Rear Panel Upper |
|
- | |||||
| 25 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 26 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 27 | W10786088 | Pulley, Motor |
|
$ 82.83 | |||||
| 28 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 29 | W11448775 | Motor Assembly (Replaces: W10824899) |
|
$ 413.33 | |||||
| 30 | W10578053 | Bracket, Motor Mounting |
|
$ 92.22 | |||||
| 31 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 32 | W10565150 | Bracket Assembly |
|
$ 106.53 | |||||
| 33 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 34 | W10759923 | Nut (Replaces: W10604214) |
|
$ 8.35 | |||||
| 35 | W10701357 | Capacitor, Motor Start |
|
$ 141.79 | |||||
| 36 | W10442539 | Capacitor, Motor Run |
|
$ 89.88 | |||||
| 37 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 38 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 39 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 40 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 41 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 42 | W11406198 | Plug, Front Panel (chrome Shadow) (Replaces: W11305280) |
|
$ 23.34 | |||||
| 43 | W10704731 | Screw |
|
- | |||||
| 44 | W10636208 | Screw |
|
- | |||||
| 45 | W11662087 | Switch, Broken Belt (Replaces: W10774832) |
|
$ 54.97 | |||||
| 46 | W11628810 | Cord, Power (Replaces: W10869142) |
|
$ 101.90 | |||||
| 47 | W10849499 | Belt, Drive (Replaces: W10610882) |
|
Immediately | $ 57.86 |
