SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Door Parts


07 - Optional Parts (not Included)

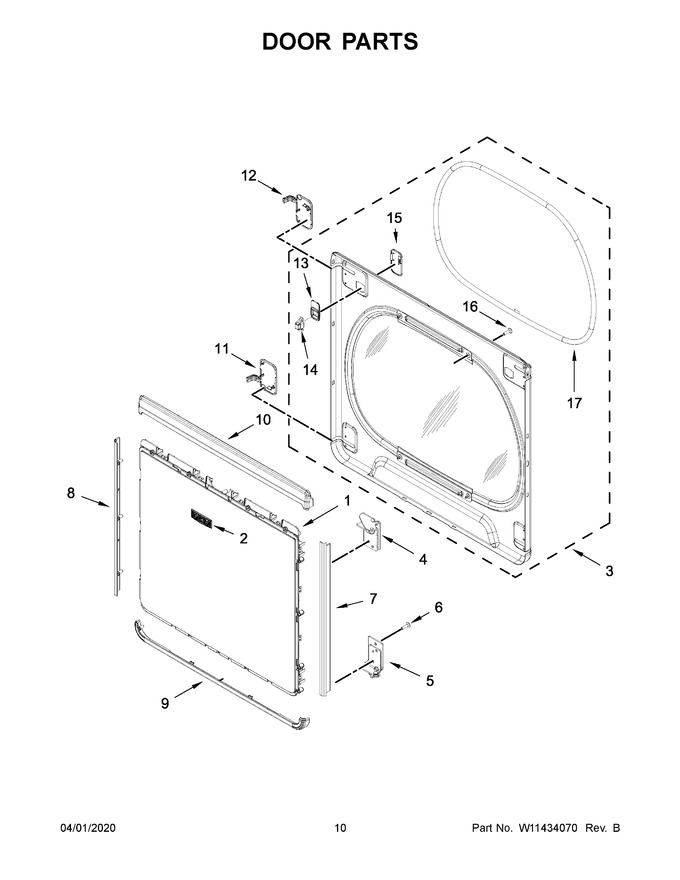

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11315255		Assembly, Outer Door		Appelez-nous	-
2	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
3	W11162064		Assembly, Inner Door (chrome Shadow)   (Replaces: W10915195)				$ 305.47
4	W10850024		Door, Hinge (upper)   (Replaces: W10783754)				$ 85.53
5	W10850044		Door, Hinge (lower)   (Replaces: W10783755)				$ 85.42
6	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
7	W11315257		Trim, Side (left)		Appelez-nous	-
8	W11315258		Trim, Side (right)		Appelez-nous	-
9	W11315256		Trim, Side (bottom)		Appelez-nous	-
10	W10608739		Trim, Handle (top)				$ 312.84
11	W10631413		Hinge Cover, Bottom (chrome Shadow)		Appelez-nous	-
12	W10631412		Hinge Cover, Top (chrome Shadow)				$ 25.76
13	W10669023		Bezel, Door Catch (chrome Shadow)				$ 23.64
14	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 26.55
15	W10669024		Cover, Door Catch (chrome Shadow)				$ 25.65
16	WP488627		Screw   (Replaces: 342055)				$ 8.11
17	W10763835		Seal, Door			Immediately	$ 129.79

    View Diagram in Separate Window       Print Part List
