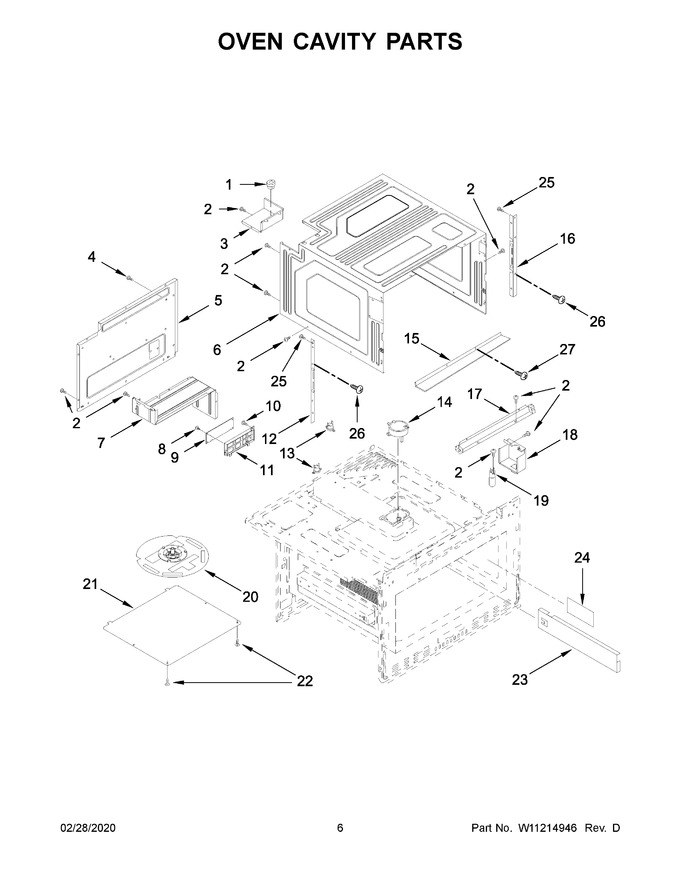

01 - Cover Sheet


02 - Drawer Parts


03 - Control Panel Parts


04 - Oven Cavity Parts


05 - Switch Parts


06 - Interior Parts


07 - Base Plate Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11199864		Bushing, Power Cord		Appelez-nous	-
2	W10278632		Screw		Appelez-nous	-
3	W11199863		Bracket, Power Cord		Appelez-nous	-
4	W10278891		Screw		Appelez-nous	-
5	W11201389		Cover, Rear		Appelez-nous	-
6	W11199812		Case, Outer		Appelez-nous	-
7	W11201800		Panel, Partition		Appelez-nous	-
8	8185369		Screw		Appelez-nous	-
9	W11445128		Relay, Power   (Replaces: W11199539)			Immediately	$ 182.96
10	8205835		Screw		Appelez-nous	-
11	W11201748		Holder, Relay		Appelez-nous	-
12	W11209950		Bracket, Left		Appelez-nous	-
13	W11199547		Cut-out, Thermal				$ 80.36
14	W11199546		Motor, Stirrer				$ 156.06
15	W11199858		Deflector				$ 74.40
16	W11209951		Bracket, Right		Appelez-nous	-
17	W11209962		Cover, Faceplate		Appelez-nous	-
18	W11201790		Cover, Lamp		Appelez-nous	-
19	W10278184		Assembly, Lamp				$ 73.03
20	W11201339		Blade, Stirrer				$ 93.91
21	W11818022		Cover, Stirrer   (Replaces: W11201789)			Immediately	$ 73.08
22	W11201783		Clip, Cover		Appelez-nous	-
23	W11201857		Panel, Bottom Partition		Appelez-nous	-
24	W11201855		Glass, Lamp		Appelez-nous	-
25	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 6.80
26	W11254786		Screw, Mounting (wood)   (Replaces: W11251704)				$ 13.30
27	W11254786		Screw, Deflector   (Replaces: W11251705)				$ 13.30

    View Diagram in Separate Window       Print Part List
