01 - Cover Sheet
02 - Drawer Parts
03 - Control Panel Parts
04 - Oven Cavity Parts
05 - Switch Parts
06 - Interior Parts
07 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

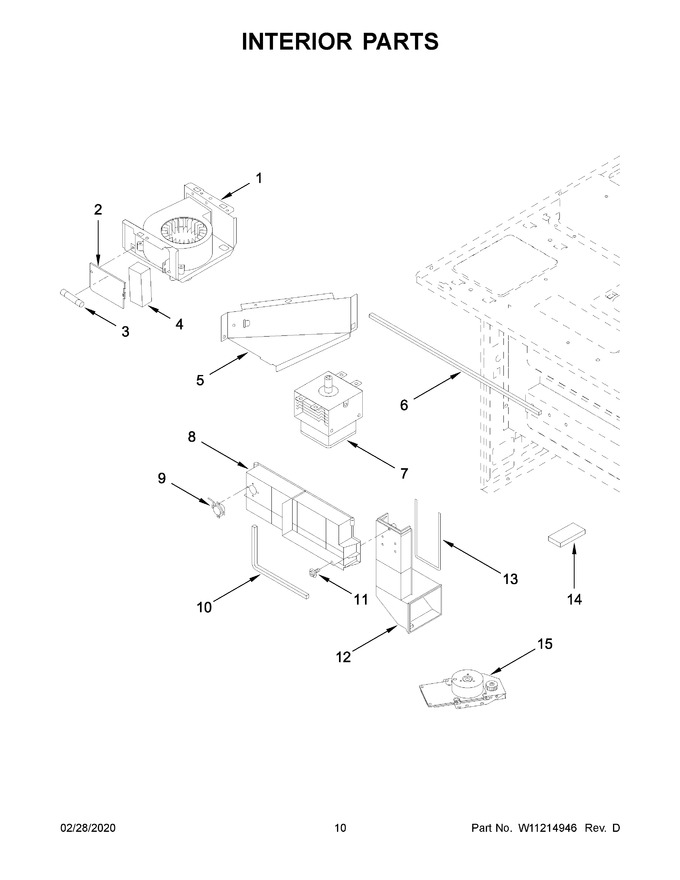

| 1 | W11362533 | Motor, Fan (Replaces: W11199544) |
|
$ 302.44 | |||||
| 2 | W11199545 | Filter, Noise |
|
Immediately | $ 192.09 | ||||
| 3 | W10278024 | Switch, Monitor |
|
$ 193.91 | |||||
| 4 | W11201861 | Cushion, Fan Motor Support |
|
- | |||||
| 5 | W11331002 | Duct, Magnetron (Replaces: W10278107) |
|
- | |||||
| 6 | W11201793 | Cushion, Inlet |
|
- | |||||
| 7 | W11596034 | Magnetron (Replaces: W10278022) |
|
Immediately | $ 382.07 | ||||
| 8 | W11201852 | Duct, Sensor |
|
$ 83.37 | |||||
| 9 | W10278023 | Assembly, Sensor |
|
$ 163.26 | |||||
| 10 | W11201803 | Cushion, Duct |
|
- | |||||
| 11 | W10278632 | Screw |
|
- | |||||
| 12 | W11201854 | Duct, Exhaust |
|
- | |||||
| 13 | W11201796 | Cushion, Exhaust Duct |
|
- | |||||
| 14 | W11201802 | Cushion, Air Flow |
|
- | |||||
| 15 | W11685618 | Assembly, Drawer Gear (Replaces: W11199810) |
|
$ 388.47 |
