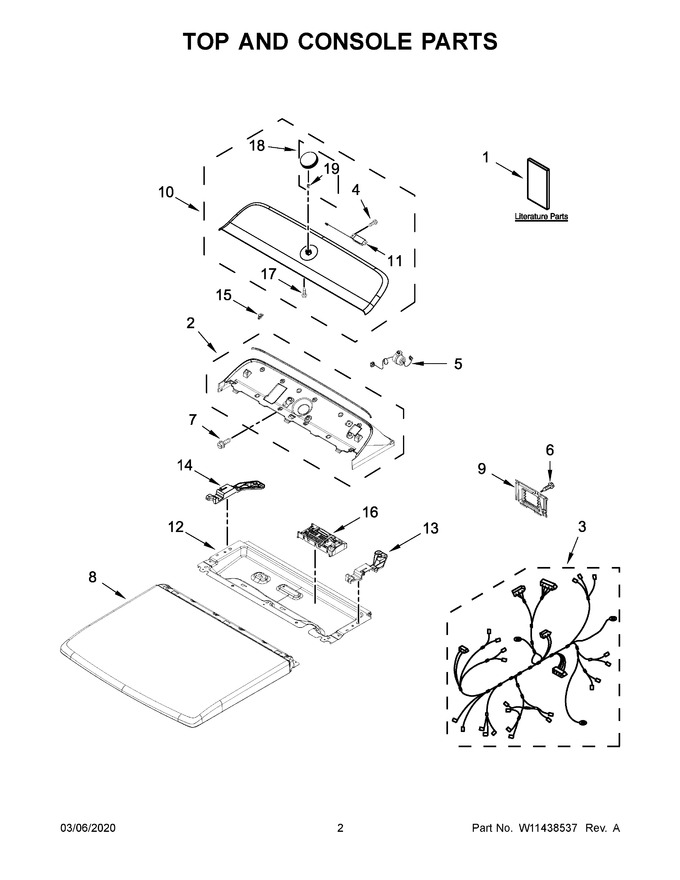

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11101372		Installation Instructions		Appelez-nous	-
2	W10903214		Console Shell Assembly (white)   (Replaces: W10795731)		Appelez-nous	-
3	W10875167		Harness, Main   (Replaces: W10706039)		Appelez-nous	-
4	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
5	W10822560		Harness, User Interface				$ 253.79
6	W10850756		Screw   (Replaces: W10773242)				$ 8.20
7	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
8	W10891045		Top (white)   (Replaces: W10748430)				$ 264.27
9	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 104.04
10	W11441746		Fascia   (Replaces: W11407213)		Appelez-nous	-
11	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
12	W10686684		Tray, Console		Appelez-nous	-
13	W10746238		Mount, Console Interface - Right Hand		Appelez-nous	-
14	W10746239		Mount, Console Interface - Left Hand		Appelez-nous	-
15	W10711050		Grommet, Screw		Appelez-nous	-
16	W11441747		Appliance Control Unit (acu)   (Replaces: W11430945)		Appelez-nous	-
17	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
18	W10830755		Knob Assembly		Appelez-nous	-
19	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
1A	W10885280		Use And Care Guide		Appelez-nous	-
1B	W10846781		Tech Sheet		Appelez-nous	-
1C	W10769192		Quickstart Guide		Appelez-nous	-
2A	W10903215		Console Shell Assembly (chrome Shadow)   (Replaces: W10795788)				$ 653.28
8A	W10891044		Top (chrome Shadow)   (Replaces: W10748431)				$ 279.87

    View Diagram in Separate Window       Print Part List
