SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts

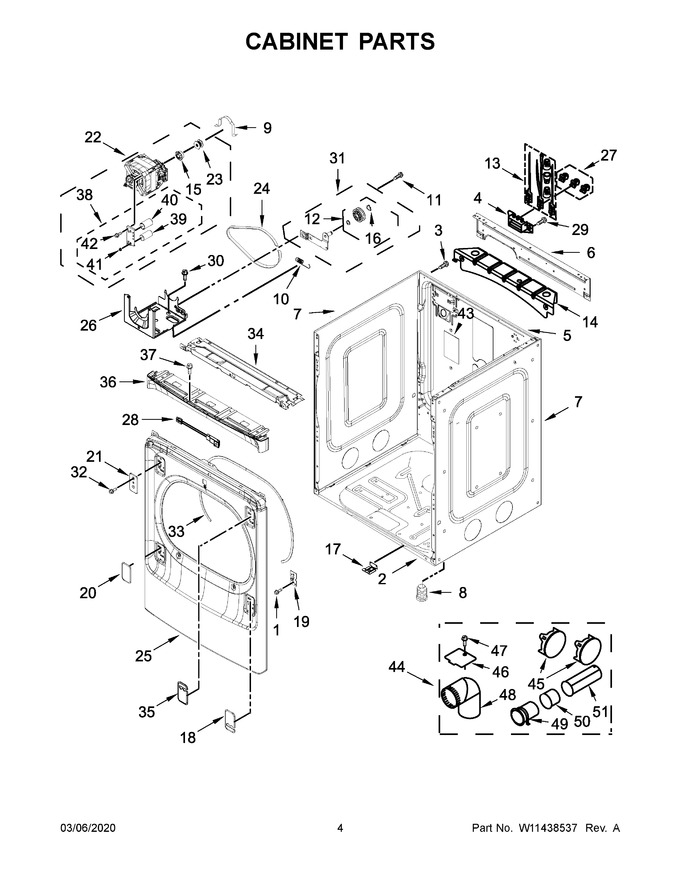

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6-920119		Screw		Appelez-nous	-
2	W10613683		Base, Cabinet				$ 201.57
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10824896		Panel, Rear				$ 311.31
6	W10622396		Bracket, Upper Rear Panel		Appelez-nous	-
7	W10663407		Panel, Side (white)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
13	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
14	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
15	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
16	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
17	W10632347		Spacer Bracket, Lower		Appelez-nous	-
18	W10627438		Hinge Cover, Bottom (white)		Appelez-nous	-
19	W10596959		Bracket, Hinge				$ 20.00
20	W10627437		Plug, Hinge (white)		Appelez-nous	-
21	W10857673		Plate, Front Panel (white)		Appelez-nous	-
22	W11448775		Motor Assembly   (Replaces: W10824899)				$ 413.33
23	W10786088		Pulley, Motor				$ 82.83
24	W11628798		Belt, Drive   (Replaces: W10597350)				$ 35.51
25	W10884829		Panel, Front (white)   (Replaces: W10627425)				$ 320.38
26	W10578053		Bracket, Motor Mounting				$ 92.22
27	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
28	W10761357		Switch, Door		Appelez-nous	-
29	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
30	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
31	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
32	W10704731		Screw		Appelez-nous	-
33	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
34	W10627432		Bracket, Front Console		Appelez-nous	-
35	W10627436		Hinge Cover, Top (white)		Appelez-nous	-
36	W11101822		Cover Assembly, Front Panel (white)   (Replaces: W10756879)		Appelez-nous	-
37	WP8534022		Screw   (Replaces: 8534022)				$ 8.37
38	W10565150		Bracket Assembly				$ 106.53
39	W10442539		Capacitor, Motor Run				$ 89.88
40	W10701357		Capacitor, Motor Start				$ 141.79
41	W10759923		Nut   (Replaces: W10604214)				$ 8.35
42	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 8.47
43	W11409002		Pad, Foam   (Replaces: W10504381)				$ 23.76
44	W10858320		Dryer Exhaust Kit (for Side & Bottom Venting), 4 Way Vent Kit				$ 121.93
45	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
46	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
47	W11568617		Screw   (Replaces: W10567155)				$ 14.72
48	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
49	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
50	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 82.90
51	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
18A	W10627439		Hinge Cover, Bottom (grey)		Appelez-nous	-
20A	W10627445		Plug, Hinge (grey)		Appelez-nous	-
21A	W10857675		Plate, Front Panel (grey)				$ 204.25
25A	W10884830		Panel, Front (chrome Shadow)   (Replaces: W10627426)				$ 329.70
35A	W10627444		Hinge Cover, Top (grey)		Appelez-nous	-
36A	W11101823		Cover Assembly, Front Panel (chrome Shadow)   (Replaces: W10756880)		Appelez-nous	-
45A	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
7A	W10681832		Panel, Side (chrome Shadow)		Appelez-nous	-
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
