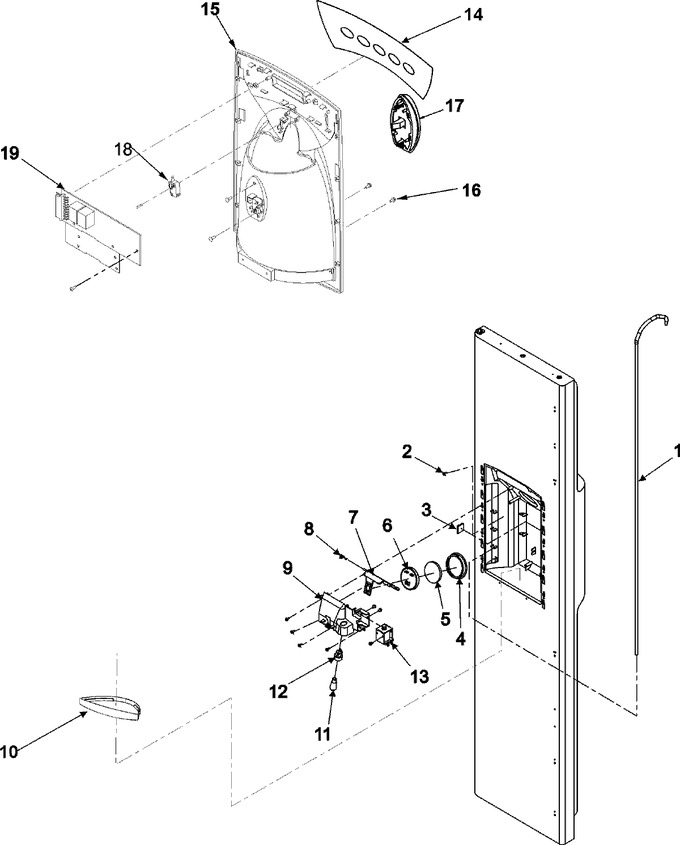

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004938 | Waterline Assy. (Replaces: 67005035) | 10 |
|
$ 132.60 | ||||
| 2 | W10833902 | Clamp, Tube (Replaces: M0108105) | 10 |
|
$ 10.99 | ||||
| 3 | M0104102 | Clip, Cord | 10 |
|
$ 8.10 | ||||
| 4 | 12665101 | Seal, Ice Chute | 10 |
|
$ 5.84 | ||||
| 5 | 12563401 | Insul, Chute Doorxx | 10 |
|
- | ||||
| 6 | 12562701 | Door, Ice Chute | 10 |
|
$ 5.84 | ||||
| 7 | 67004119 | Hinge, Ice Chute | 10 |
|
$ 5.70 | ||||
| 8 | WP12565502 | Spring, Chute Dr (Replaces: 12565502) | 10 |
|
$ 7.81 | ||||
| 9 | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 6.95 | |||
| 9 | 67005010 | Extension, Ice Chute | 10 |
|
- | ||||
| 9 | W10133699 | Ext, Ice Chute | 11 |
|
- | ||||
| 10 | WP67005636 | Tray, Sump (blk) (Replaces: 67004521) | 10 |
|
$ 65.52 | ||||
| 11 | 67003741 | Bulb, Light (blue) | 10 |
|
- | ||||
| 12 | 12617501 | Socket, Light | 10 |
|
- | ||||
| 13 | 12575401 | Solenoid | 10 |
|
- | ||||
| 13 | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 6.95 | |||
| 14 | 67005201 | Insert, Facade (blk) | 10 |
|
- | ||||
| 15 | 67006870 | Facade (blk) | 11 |
|
- | ||||
| 15 | 67005204 | Facade (blk) |
|
- | |||||
| 16 | R9800670 | Screw, Mounting (Replaces: M0223230) | 10 |
|
$ 9.38 | ||||
| 17 | 12593203B | Actr Pad Frame Assy (blk) | 10 |
|
$ 24.53 | ||||
| 17 | 67004511 | Actr Pad Frame Assy. (blk) | 11 |
|
- | ||||
| 17 | 12665401W | Button, Sports Fill (wht) | 10 |
|
- | ||||
| 17 | 12665402B | Button, Sports Fill (blk) | 10 |
|
- | ||||
| 18 | WP12575501 | Switch, Limit (Replaces: 12575501) | 10 |
|
$ 68.90 | ||||
| 18 | 2006254 | Screw,hi/lo (Replaces: M0237902) | 10 |
|
$ 13.13 | ||||
| 19 | 67005013 | Board, Control | 10 |
|
- | ||||
| 19 | 67007154 | Board, Control | 11 |
|
- | ||||
| NI | Y67006001 | Solenoid | 11 |
|
- |
