SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assy & Deli Assy


05 - Evap Fan Assy And Lights


06 - Evaporator Assy And Rollers


07 - Freezer Door


08 - Fz Door And Facade


09 - Fz Shelf


10 - Handles And Trim


11 - Hinges


12 - Ice Bucket Assy


13 - Ice Maker


14 - Light Covers And Toe Grille


15 - Lights And Ice Maker


16 - Refrigerator Door


17 - Supplemental Information


18 - Wiring Information

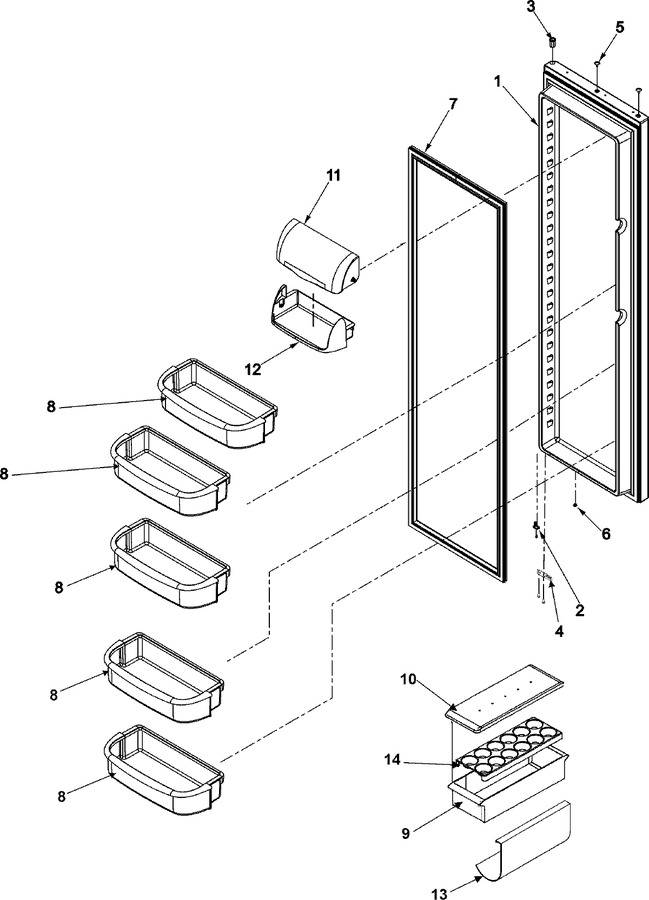

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10133592		Ref Dr Foam Assy (blk)	11	Appelez-nous	-
1	67005309		Door Assy., Ref. Foam (blk)	10	Appelez-nous	-
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 10.44
2	R0181181		Kit,dr Closure--w	10		Immediately	$ 7.19
2	67006493		Closure, Door (blk)	11			$ 19.93
3	10961002		Bushing, Door (blk)	10	Appelez-nous	-
3	67004976		Bushing, Door (blk)	11	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
4	12636401B		Stop, Door (blk)	10			$ 10.80
4	67006516		Stop, Door (blk)	11	Appelez-nous	-
5	M0311604		Plug, Button (blk)	10	Appelez-nous	-
6	A3080001		Plug, Button (blk)	10	Appelez-nous	-
7	67004924		Gasket, Ref. Door (blk)	10			$ 151.59
8	67005313		Bucket, Ref	10	Appelez-nous	-
9	10423131		Bin, Utility	10			$ 31.13
10	10436404		Lid, Utility	10			$ 60.85
11	67005322		Door Dairy Assy	10	Appelez-nous	-
12	67004927		Tray, Dairy	10	Appelez-nous	-
13	10448903		Rack, Bottle	10	Appelez-nous	-
14	10436506		Tray, Egg	10			$ 8.28

    View Diagram in Separate Window       Print Part List
