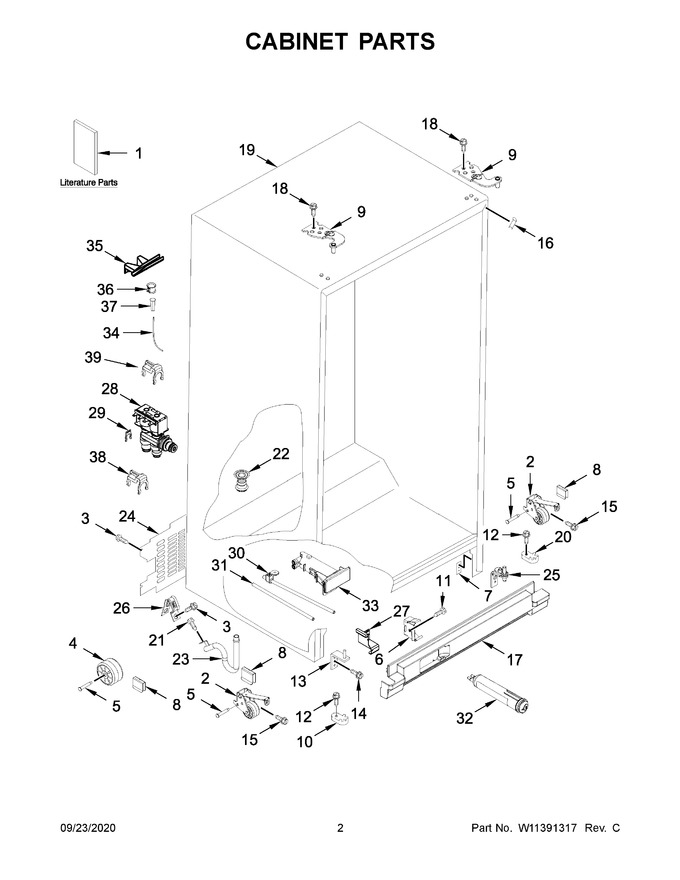

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11105309 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Assembly, Roller (left Hand) (Replaces: W10304660) |
|
Immediately | $ 73.90 | ||||
| 3 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: W11365774) |
|
Immediately | $ 19.12 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | W11036715 | Plate, Screw (refrigerator) |
|
- | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 19.12 | ||||
| 9 | W11579508 | Hinge, Top (white (refrigerator)) (Replaces: W10922200) |
|
$ 38.78 | |||||
| 10 | W11679635 | Closer, Door (freezer) (Replaces: W11095731) |
|
Immediately | $ 13.73 | ||||
| 11 | WP489128 | Screw (Replaces: 8281149) |
|
$ 11.40 | |||||
| 12 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 13 | W11687636 | Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
$ 72.89 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.75 | |||||
| 16 | W11219639 | Filler, Wrapper (white) |
|
$ 11.88 | |||||
| 17 | W11282545 | Grille (white) (Replaces: W11226340) |
|
- | |||||
| 18 | WPW10308750 | Screw (white) (Replaces: W10308750) |
|
$ 73.29 | |||||
| 19 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 20 | W11398787 | Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
$ 14.61 | |||||
| 21 | WP489464 | Screw (Replaces: 489464A) |
|
Immediately | $ 8.38 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 36.53 | |||||
| 24 | W11778265 | Cover, Unit (Replaces: W10904634) |
|
$ 96.08 | |||||
| 25 | W11399415 | Assembly, Bottom Hinge (refrigerator) (Replaces: W11097327) |
|
$ 73.28 | |||||
| 26 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 22.12 | |||||
| 27 | W10897565 | Assembly, Bracket |
|
$ 71.89 | |||||
| 28 | WPW10179146 | Assembly, Filter Valve (Replaces: W10179146) |
|
Immediately | $ 99.47 | ||||
| 29 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 14.89 | |||||
| 30 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.90 | |||||
| 31 | W11162040 | Tube, Filter Inlet (Replaces: W10900449) |
|
$ 121.20 | |||||
| 32 | W11162036 | Tube, Filter Outlet (Replaces: W10900447) |
|
$ 120.45 | |||||
| 33 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 34 | W10823511 | Tube, Water (Replaces: W10357076) |
|
Immediately | $ 32.41 | ||||
| 35 | W11505385 | Chute, Water (Replaces: W11444726) |
|
$ 35.32 | |||||
| 36 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 65.90 | |||||
| 37 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 38 | W11091654 | Connector, Double Lock |
|
Immediately | $ 22.21 | ||||
| 39 | W11252188 | Double Lock Ring (1/4) |
|
$ 20.85 | |||||
| 16A | W11219641 | Filler, Wrapper (black) |
|
$ 11.88 | |||||
| 16B | W11219640 | Filler, Wrapper (biscuit) |
|
- | |||||
| 16C | W11219642 | Filler, Wrapper (grey) |
|
Immediately | $ 12.85 | ||||
| 17A | W11282546 | Grille (black) (Replaces: W11226342) |
|
$ 123.01 | |||||
| 17B | W11282543 | Grille (biscuit) (Replaces: W11226336) |
|
- | |||||
| 17C | W11282544 | Grille (grey) (Replaces: W11226338) |
|
$ 128.80 | |||||
| 18A | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.84 | |||||
| 1A | W11248697 | Tech Sheet |
|
- | |||||
| 1B | W11239611 | Energy Guide |
|
- | |||||
| 2A | WPW10304659 | Assembly, Roller (right Hand) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 33A | W11162041 | Housing, Water Filter (white) (Replaces: W11036340) |
|
Immediately | $ 132.05 | ||||
| 33B | W11172791 | Housing, Water Filter (black) (Replaces: W11036341) |
|
Immediately | $ 220.12 | ||||
| 33C | W11036339 | Housing, Water Filter (biscuit) |
|
- | |||||
| 33D | W11162042 | Housing, Water Filter (grey) (Replaces: W11036338) |
|
Immediately | $ 149.82 | ||||
| 7A | W10904380 | Plate, Screw (freezer) |
|
$ 25.96 | |||||
| 9A | W11579508 | Hinge, Top (white (freezer)) (Replaces: W10922201) |
|
$ 38.78 | |||||
| 9B | W10922216 | Hinge, Top (black (refrigerator)) |
|
$ 69.66 | |||||
| 9C | W10922217 | Hinge, Top (black (freezer)) |
|
- | |||||
| 9D | W10922218 | Hinge, Top (biscuit (refrigerator)) |
|
- | |||||
| 9E | W10922219 | Hinge, Top (biscuit (freezer)) |
|
- | |||||
| 9F | W11579508 | Hinge, Top (grey (refrigerator)) (Replaces: W10900868) |
|
$ 38.78 | |||||
| 9G | W11505709 | Hinge, Top (grey (freezer)) (Replaces: W10900869) |
|
$ 67.52 |
