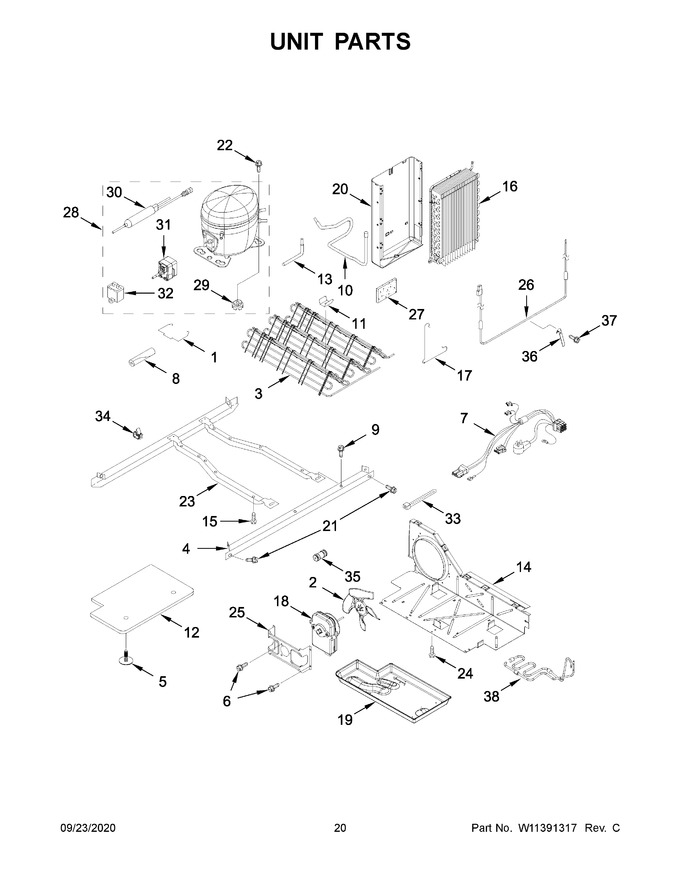

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11632924 | Assembly, Condenser (Replaces: W10904626) |
|
Immediately | $ 237.55 | ||||
| 4 | W10900442 | Rail, Unit Mounting |
|
- | |||||
| 5 | 489396 | Clip |
|
$ 11.26 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | W11580023 | Assembly, Unit Wire (includes Power Cord) (Replaces: W11218404) |
|
$ 79.01 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W11201407 | Tube, Suction |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 12 | W10897560 | Assembly, Unit Cover (bottom) |
|
$ 101.57 | |||||
| 13 | W11676464 | Tube, Process (Replaces: W11239207) |
|
$ 108.61 | |||||
| 14 | W10896764 | Baffle, Air (Replaces: W10897567) |
|
$ 101.20 | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 16 | W11284480 | Evaporator (Replaces: W10878980) |
|
- | |||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W10522629) |
|
Immediately | $ 71.42 | ||||
| 19 | W11678304 | Tray, Evaporator (Replaces: W10897557) |
|
$ 57.39 | |||||
| 20 | W10194475 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | 489340 | Bolt |
|
- | |||||
| 22 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 23 | W10900446 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
- | |||||
| 24 | WP489464 | Screw (Replaces: 489464A) |
|
Immediately | $ 8.38 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 90.70 | ||||
| 27 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 28 | W10233960 | Compressor (Replaces: W11322225) |
|
Immediately | $ 539.34 | ||||
| 29 | W10836504 | Grommet, Compressor |
|
$ 18.25 | |||||
| 30 | WPW10143759 | Drier (Replaces: W10771114) |
|
Immediately | $ 30.78 | ||||
| 31 | WPW10197428 | Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 32 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 33 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 35 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 36 | W11611126 | Probe, Heat (Replaces: W10895163) |
|
$ 23.16 | |||||
| 37 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 38 | W11678305 | Assembly, Precooler Formed (Replaces: W11189542) |
|
$ 66.63 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | N/P | Refrigerant Charge 5.50 Oz. (r-134a) |
|
- | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 |
