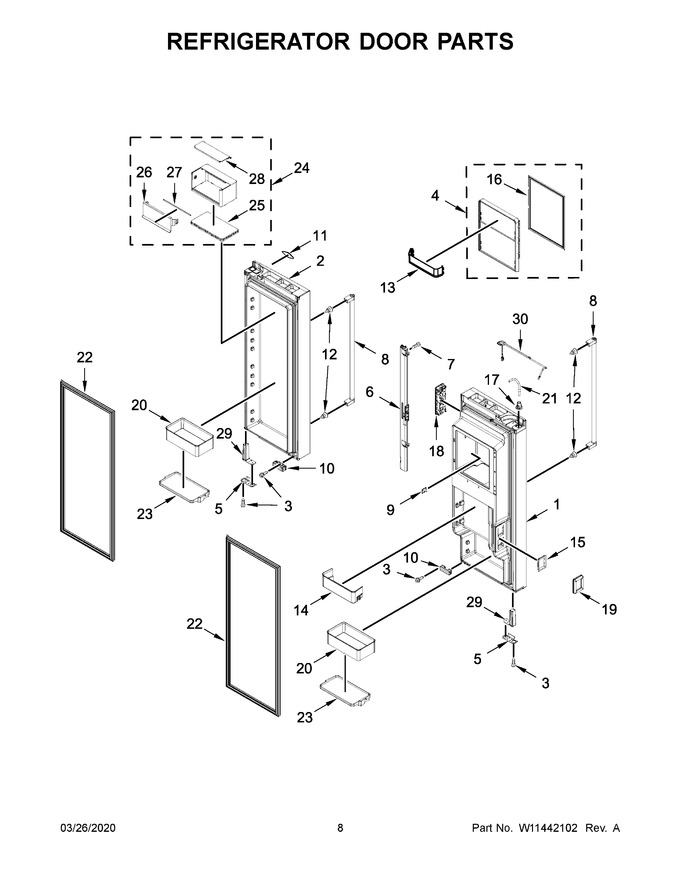

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449015 | Door, Refrigerator Left Hand (stainless (also Order Item # 18)) (Replaces: W11401433) |
|
$ 1,208.21 | |||||
| 2 | W11449026 | Door, Refrigerator Right Hand (stainless) (Replaces: W11424492) |
|
$ 904.76 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11594927 | Assembly, Ice Door (Replaces: W10798124) |
|
$ 177.40 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 76.11 | ||||
| 6 | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 141.79 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W11202867) |
|
Immediately | $ 178.01 | ||||
| 9 | W11291144 | Switch, Rocker Arm (Replaces: W11035875) |
|
$ 35.43 | |||||
| 10 | W10798308 | Bumper, Door (grey) |
|
$ 26.97 | |||||
| 11 | W10909682 | Nameplate (badge) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 12 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 13 | W10887799 | Trivet, Ice Compartment Door (Replaces: W10795606) |
|
Immediately | $ 106.65 | ||||
| 14 | W10887800 | Bin, Door (medium) (Replaces: W10806697) |
|
Immediately | $ 86.81 | ||||
| 15 | W10834282 | Retainer, Door Duct |
|
$ 27.78 | |||||
| 16 | W11625086 | Gasket, Ice Door (Replaces: W10853441) |
|
$ 79.87 | |||||
| 17 | W11315303 | Clip, Tube |
|
- | |||||
| 18 | W11330486 | Assembly, User Interface (Replaces: W11227903) |
|
Immediately | $ 323.05 | ||||
| 19 | W11227369 | Gasket, Cooling Duct (Replaces: W10828418) |
|
$ 26.78 | |||||
| 20 | W10887801 | Bin, Door (gallon) (Replaces: W10776705) |
|
$ 124.45 | |||||
| 21 | W11518276 | Tube, Water (Replaces: W11391308) |
|
$ 92.79 | |||||
| 22 | W10917313 | Gasket, Door (grey) |
|
Immediately | $ 196.76 | ||||
| 23 | W11733335 | Trim, Gallon (Replaces: W10823512) |
|
$ 315.65 | |||||
| 24 | W10887802 | Assembly, Utility Bin (Replaces: W10795526) |
|
$ 155.91 | |||||
| 25 | W10795523 | Base, Utility Bin |
|
- | |||||
| 26 | W10803630 | Door, Utility Bin (includes Gasket) |
|
$ 96.03 | |||||
| 27 | W10795525 | Gasket, Utility Bin |
|
$ 42.74 | |||||
| 28 | W10795524 | Lid, Utility Bin |
|
$ 173.29 | |||||
| 29 | W11179355 | Closer, Door (left Hand) (Replaces: W10872968) |
|
$ 26.06 | |||||
| 30 | W11596134 | Assembly, Fill Tube (Replaces: W11401681) |
|
$ 97.56 | |||||
| 29A | W11189598 | Closer, Door (right Hand) (Replaces: W10872969) |
|
$ 26.06 |
