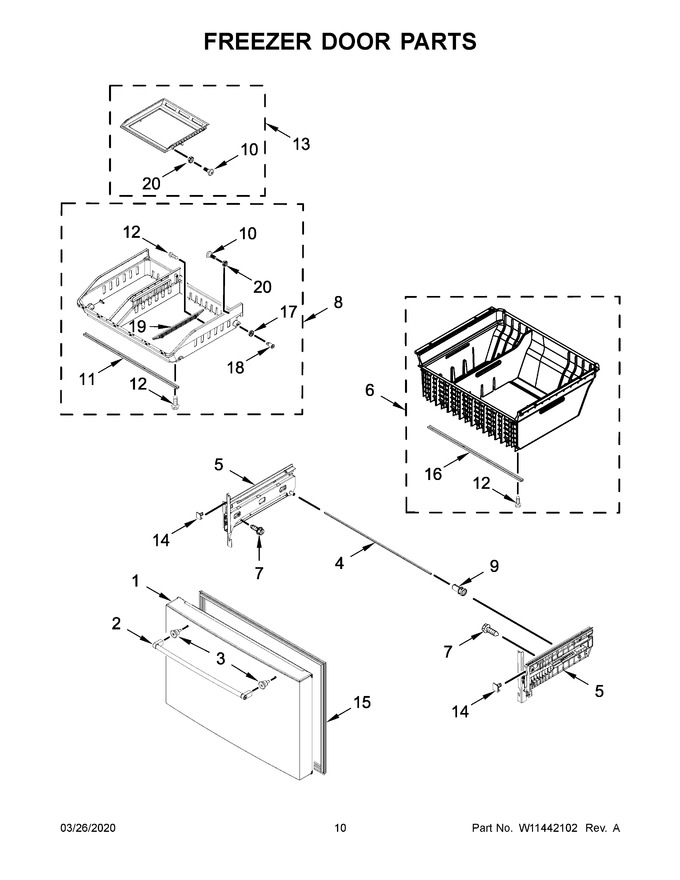

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449028		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W11424564)				$ 902.60
2	W11483535		Handle, Door (stainless)   (Replaces: W11251055)				$ 194.87
3	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
4	W11173556		Shaft, Rack   (Replaces: W10851956)				$ 32.38
5	W11241580		Assembly, Bracket (left Hand)   (Replaces: W10795843)			Immediately	$ 194.31
6	W10795851		Assembly, Bottom Pan				$ 164.63
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W11102087		Assembly, Top Pan				$ 348.61
9	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 12.09
10	67006692		Screw   (Replaces: 12991401)				$ 10.79
11	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 8.33
13	W10887810		Assembly, Upper Half Pan   (Replaces: W10795835)				$ 261.61
14	W10795820		Stop, Pan (left Hand)				$ 91.40
15	W11585972		Gasket, Door (grey)   (Replaces: W10868406)				$ 244.55
16	W10697812		Bar, Support		Appelez-nous	-
17	W10874022		Roller		Appelez-nous	-
18	W10839803		Axle, Roller		Appelez-nous	-
19	W10830659		Rail, Guard		Appelez-nous	-
20	W10837296		Roller		Appelez-nous	-
14A	W10795822		Stop, Pan (right Hand)				$ 91.40
5A	W11241268		Assembly, Bracket (right Hand)   (Replaces: W10795847)				$ 188.45
