SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy & Crisper Light


06 - Evaporator Assy And Rollers


07 - Freezer Compartment


08 - Freezer Door


09 - Freezer Shelves


10 - Hinges


11 - Ice Maker


12 - Refrigerator Door


13 - Refrigerator Shelves


14 - Supplemental Information


15 - Wiring Information

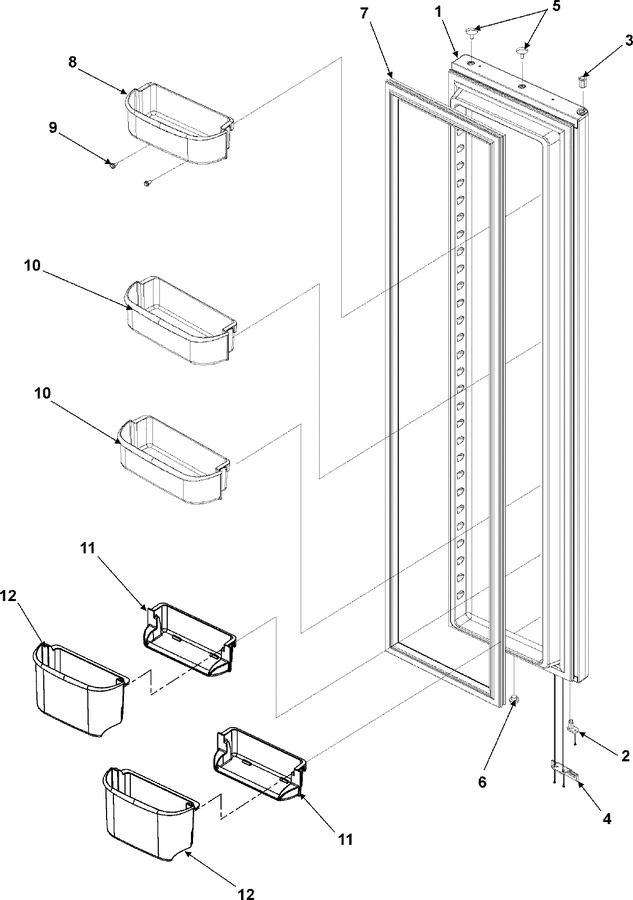

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10133832		Fz Door Foam Assy (blk)	11	Appelez-nous	-
1	12818419BQ		Fz Door Foam Assy (blk)   (Replaces: 67005272)	10	Appelez-nous	-
2	R0181181		Kit,dr Closure--w	10		Immediately	$ 7.19
2	67006493		Closure, Door (blk)	11			$ 19.93
2	WP8281227		Screw, Tc   (Replaces: M0220432)	10			$ 10.44
3	67004627		Bushing, Door (blk)	10	Appelez-nous	-
4	12636401B		Stop, Door (blk)	10			$ 10.80
4	67007020		Stop, Door (blk)	11	Appelez-nous	-
4	WP98165		Screw, Sm   (Replaces: M0211018)	10			$ 8.00
5	M0311604		Plug, Button (blk)	10	Appelez-nous	-
6	A3080001		Plug, Button (blk)	10	Appelez-nous	-
7	W10133491		Gasket, Fz Door (blk)	11			$ 342.75
7	W10840101		Gasket, Ref. Door (blk)   (Replaces: 67003965)	10			$ 311.67
8	12664901		Bucket-conv Fz Dr	10	Appelez-nous	-
9	67003334		Screw, Tc	10	Appelez-nous	-
10	12557501		Bucket, Lwr Fz Dr	10			$ 17.64
11	67004291		Frame, Tilt Bucket	10	Appelez-nous	-
12	67004290		Bucket, Fz Tilt	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
