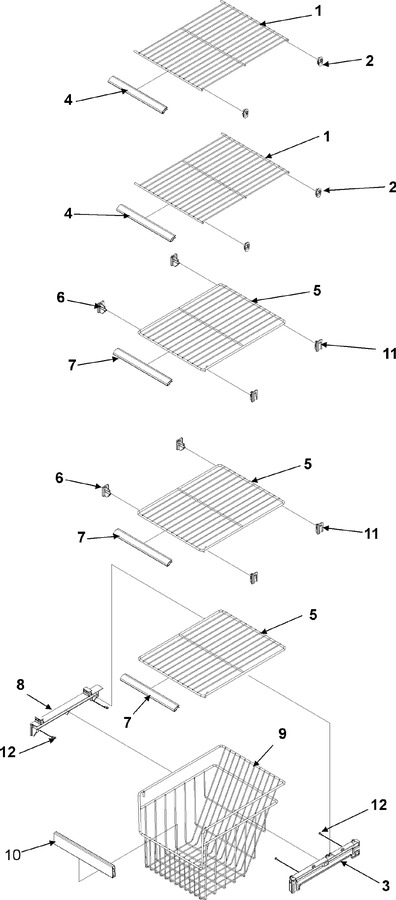

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004354		Shelf, Upr Frz.	10	Appelez-nous	-
2	C8973801		Support, Frz Shelf	10			$ 8.35
3	67004179		Rail, Basket (rt)	10	Appelez-nous	-
4	12314102		Trim, Basket/shelf	10	Appelez-nous	-
5	67004690		Shelf, Lwr Frz.	10	Appelez-nous	-
6	12015002		Support, Shelf (lt)	10			$ 7.38
7	12314101		Trim, Basket/shelf	10	Appelez-nous	-
8	67004182		Rail, Basket (lt)	10	Appelez-nous	-
9	67004251		Basket, Lwr Frz	10	Appelez-nous	-
10	10508510		Handle, Basket	10	Appelez-nous	-
11	WP10941102		Support, Shelf (rt)	10			$ 11.81
