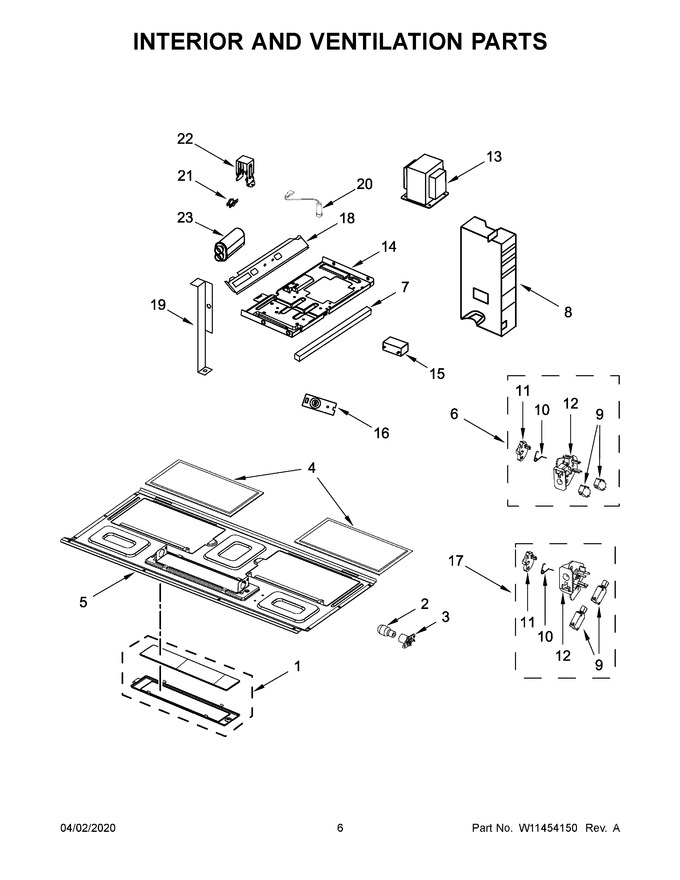

04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240330		Assembly, Lamp Glass And Holder				$ 7.19
2	8206232A		Lamp, 40 Watt   (Replaces: 8206232)			Immediately	$ 7.34
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 244.83
6	W11551558		Assembly, Upper Interlock (includes Switches)   (Replaces: W11433682)			Immediately	$ 33.70
7	W10571179		Seal, Cooling		Appelez-nous	-
8	W11302941		Air Guide, Lower   (Replaces: W11282097)				$ 82.66
9	N/P		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
10	W10156812		Spring, Interlock			Immediately	$ 12.14
11	W10562613		Plate, Cam			Immediately	$ 17.83
12	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
13	W10836753		Transformer, High Voltage   (Replaces: W10754523)			Immediately	$ 236.06
14	W10827115		Chassis				$ 133.49
15	W11405832		Capacitor, Hood Motor   (Replaces: W10210855)				$ 27.24
16	W10163422		Thermistor				$ 171.14
17	W11551761		Assembly, Lower Interlock (includes Switches)   (Replaces: W11433683)			Immediately	$ 30.78
18	W10904020		Support, Ntc		Appelez-nous	-
19	W10313275		Bracket, Top Cavity				$ 33.92
20	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 33.20
21	W11224856		Thermostat, Cavity				$ 87.39
22	W11265233		Bracket, Capacitor		Appelez-nous	-
23	8206562		Capacitor, High Voltage			Immediately	$ 120.92
12A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
