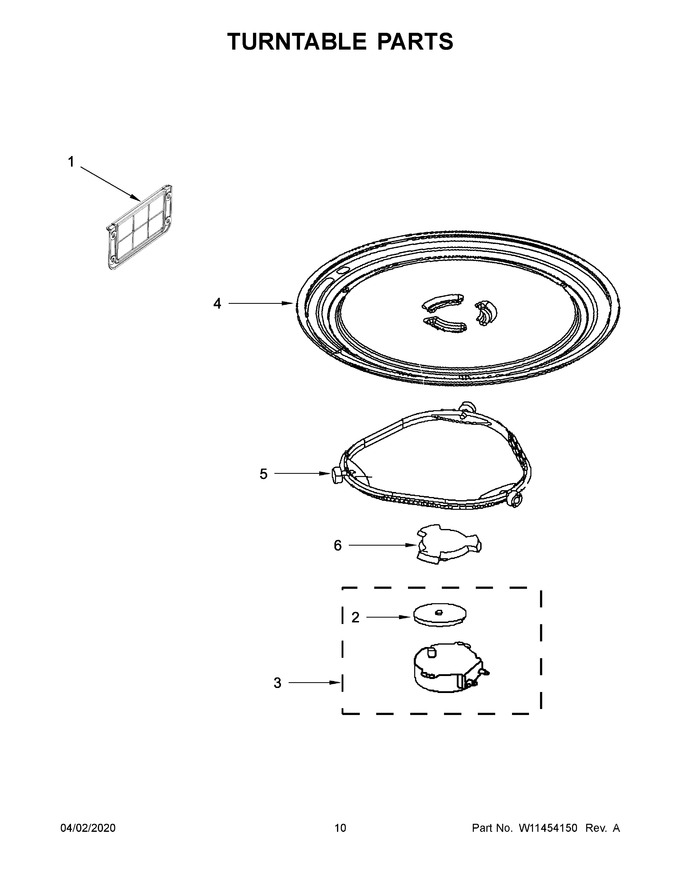

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11763417 | Cover, Waveguide (Replaces: W11238817) |
|
$ 12.16 | |||||
| 2 | 8184109 | Seal, Waterproof |
|
$ 6.95 | |||||
| 3 | W10642989 | Motor, Turntable |
|
Immediately | $ 190.43 | ||||
| 4 | W11367904 | Turntable (Replaces: W11335034) |
|
Immediately | $ 72.89 | ||||
| 5 | W11252182 | Ring, Turntable (with Rollers) (Replaces: W11193600) |
|
Immediately | $ 39.55 | ||||
| 6 | W11245707 | Driver, Turntable (Replaces: W11193599) |
|
Immediately | $ 83.44 |
