SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy & Crisper Light


06 - Evaporator Assy And Rollers


07 - Freezer Compartment


08 - Freezer Door


09 - Freezer Shelves


10 - Hinges


11 - Ice Maker


12 - Refrigerator Door


13 - Refrigerator Shelves


14 - Supplemental Information


15 - Wiring Information

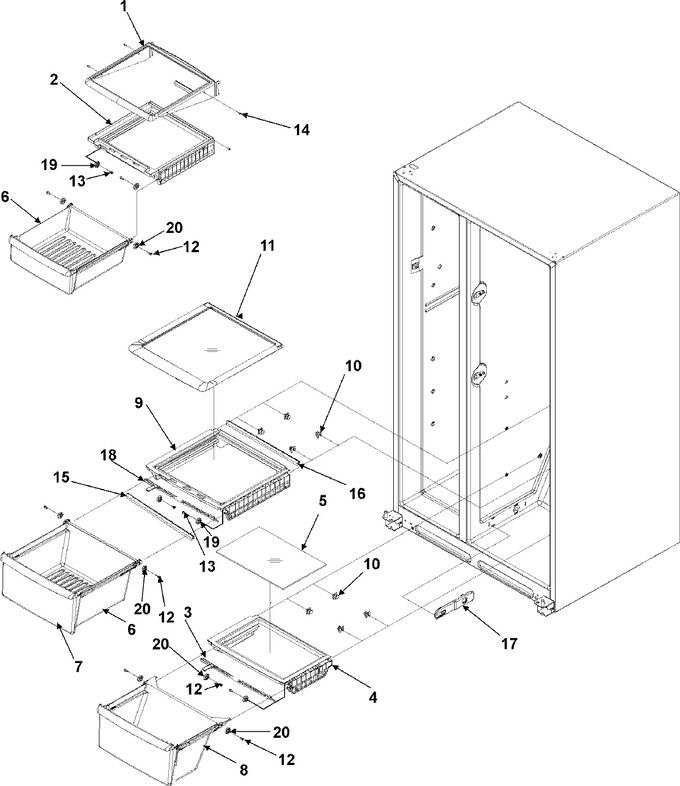

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004129		Shelf, Ref Sta	10	Appelez-nous	-
2	67004413		Frame, Adj Crisper	10	Appelez-nous	-
3	67005209		Slide, Humidity	10	Appelez-nous	-
4	67004247		Frame, Meat Shelf	10	Appelez-nous	-
5	67004132		Glass, Meat Shelf	10	Appelez-nous	-
6	67003892		Pan, Adj Crisper	10	Appelez-nous	-
7	67005273		Pan, Lrg Crisper	10	Appelez-nous	-
8	67005274		Pan, Meat	10	Appelez-nous	-
9	67004140		Frame, Crisper Shelf	10	Appelez-nous	-
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.31
11	67004130		Shelf, Crisper Top	10	Appelez-nous	-
12	67004174		Pin, Roller	10			$ 6.11
13	67006692		Screw, Shoulder   (Replaces: M0238105)	10			$ 10.28
14	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
15	67004248		Seal, Crisper Frame (frt)	10	Appelez-nous	-
16	67004249		Seal, Crisper Frame (rear)	10	Appelez-nous	-
17	67004311		Temp Control Assy	10			$ 69.25
18	67004884		Slide, Humidity Control (blue)	10			$ 25.18
19	67004133		Roller, Pan	10	Appelez-nous	-
20	67004169		Roller, Crisper	10			$ 5.81

    View Diagram in Separate Window       Print Part List
