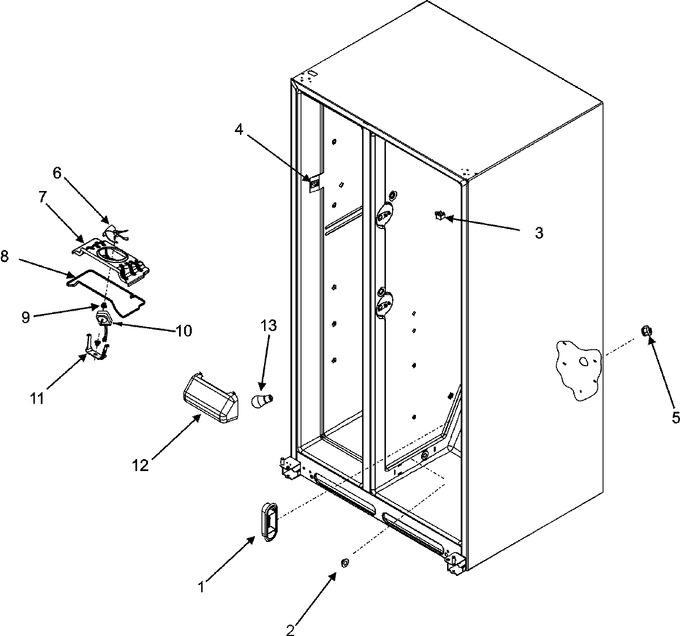

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12634801		Grille, Return Air	10	Appelez-nous	-
2	67002826		Plug, Air Tunnel	10	Appelez-nous	-
3	W11291138		Switch, Ref Light   (Replaces: 12466104)	10		Immediately	$ 36.67
4	W11396033		Switch, Light   (Replaces: 12466103)	10		Immediately	$ 37.30
5	W11447232		Socket, Light   (Replaces: 67005016)	10		Immediately	$ 13.21
6	WP2169142		Fan, Evaporator   (Replaces: 12217201)	10		Immediately	$ 43.41
7	67004253		Shroud, Evap	10	Appelez-nous	-
8	67001508		Gasket	10	Appelez-nous	-
9	WP67002780		Grommet, Fan Motor (blk)   (Replaces: 67002780)	10			$ 7.81
10	WP67005023		Motor, Evap Fan   (Replaces: 67005023)	10			$ 312.36
11	WP67005633		Clip   (Replaces: 67003083)	10			$ 7.65
12	67001507		Shield, Crisper Light	10	Appelez-nous	-
13	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 11.75

    View Diagram in Separate Window       Print Part List
