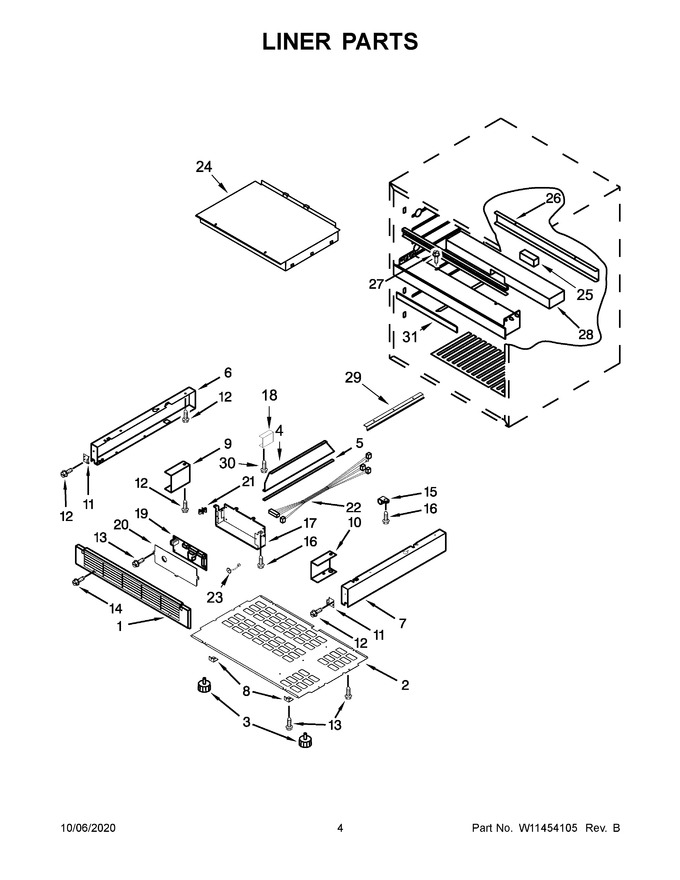

03 - Liner Parts
04 - Upper Drawer Parts
05 - Lower Drawer Parts
06 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204635 | Kick Plate |
|
$ 192.12 | |||||
| 2 | W10772863 | Cover, Bottom |
|
$ 91.41 | |||||
| 3 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 19.03 | |||||
| 4 | W10778959 | Auxiliary Plate |
|
- | |||||
| 5 | 4344823 | Seal, Brace |
|
$ 101.83 | |||||
| 6 | W10800049 | Frame (left Hand) |
|
- | |||||
| 7 | W10800050 | Frame (right Hand) |
|
- | |||||
| 8 | W10239388 | Bracket, Grille |
|
- | |||||
| 9 | 4344820 | Support (left Hand) |
|
- | |||||
| 10 | 4344821 | Support (right Hand) |
|
- | |||||
| 11 | W10204640 | Kick Plate Mount |
|
$ 79.73 | |||||
| 12 | 4344797 | Screw |
|
- | |||||
| 13 | 4344826 | Screw |
|
$ 16.70 | |||||
| 14 | W10319184 | Screw |
|
- | |||||
| 15 | W10270482 | Cable Clamp |
|
- | |||||
| 16 | 4344825 | Screw |
|
- | |||||
| 17 | W10772866 | Main Pcb Box |
|
$ 95.98 | |||||
| 18 | W10788699 | Bracket, Pcb |
|
- | |||||
| 19 | W11422836 | Main Pcb |
|
$ 321.05 | |||||
| 20 | W10788698 | Cover, Speaker Sensor |
|
- | |||||
| 21 | W10204659 | Pcb Standoff |
|
$ 59.39 | |||||
| 22 | W10772870 | Harness Extension |
|
Immediately | $ 134.18 | ||||
| 23 | W10788693 | Speaker |
|
$ 101.30 | |||||
| 24 | W10622002 | Mullion Body Assembly |
|
- | |||||
| 25 | W10205072 | Mullion Insulation |
|
- | |||||
| 26 | W11422824 | Mullion Case Cover |
|
- | |||||
| 27 | W10319183 | Screw |
|
- | |||||
| 28 | W10621528 | Mullion Insulation |
|
- | |||||
| 29 | W10204674 | Block Air Circulation (Replaces: W10780353) |
|
$ 127.68 | |||||
| 30 | W11422709 | Screw |
|
- | |||||
| 31 | W11422742 | Mullion Case Insulation Front |
|
- |
