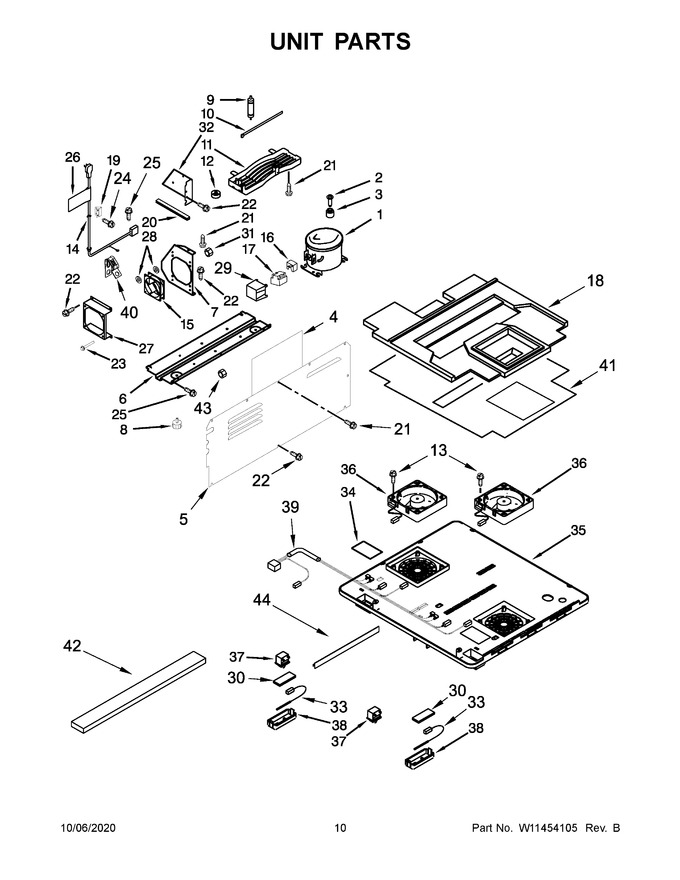

06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11422743		Compressor				$ 619.53
2	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
3	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 8.47
4	W10778963		Insulation, Rear Cover		Appelez-nous	-
5	W10796445		Cover, Rear		Appelez-nous	-
6	W11422734		Cabinet Base Plate		Appelez-nous	-
7	W10204674		Air Baffle				$ 127.68
8	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 19.03
9	W10163273		Drier				$ 103.41
10	4344829		Tie, Cable		Appelez-nous	-
11	W10316689		Pan, Drain				$ 163.70
12	W10163276		Trap, Drain				$ 90.13
13	W10205061		Screw		Appelez-nous	-
14	WPW10204676		Cord, Power   (Replaces: W10204676)				$ 113.02
15	W10772882		Condenser Dc Motor				$ 347.43
16	W11422769		Overload Relay		Appelez-nous	-
17	W11596023		Ptc Thermistor   (Replaces: W11422771)				$ 74.61
18	W10772919		Insulation, Fan Cover		Appelez-nous	-
19	W10270517		Clamp, Cord				$ 79.51
20	4344907		Trim, Edge		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344832		Screw		Appelez-nous	-
23	W11422695		Screw		Appelez-nous	-
24	W10837731		Screw   (Replaces: W10204865)				$ 8.30
25	4344797		Screw		Appelez-nous	-
26	W11444462		Warning Label		Appelez-nous	-
27	W11506521		Fan Cover, Condenser   (Replaces: W10772889)		Appelez-nous	-
28	W10204688		Fan Bushing		Appelez-nous	-
29	W11422786		Cover, Relay		Appelez-nous	-
30	W10204948		Sensor Case Seal		Appelez-nous	-
31	W10772890		Nut		Appelez-nous	-
32	W10239387		Bracket, Defrost Timer		Appelez-nous	-
33	W11238391		Temperature Sensor   (Replaces: W10772916)			Immediately	$ 130.99
34	W10205062		Terminal Protector		Appelez-nous	-
35	W10796448		Cover, Fan		Appelez-nous	-
36	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 313.91
37	W10721454		Door Switch				$ 41.81
38	W10775535		Sensor Case		Appelez-nous	-
39	W10772918		Harness, Fan Cover				$ 130.53
40	W10281591		Clamp, Cord		Appelez-nous	-
41	W10772920		Plate Cover		Appelez-nous	-
42	W10788704		Seal		Appelez-nous	-
43	W11422694		Spring Washer		Appelez-nous	-
44	W11422827		Seal		Appelez-nous	-
NI	N/P		Refrigerant Charge R134a 100g (3.53 Oz)		Appelez-nous	-
NI	W10266810		Aluminum Tape			Immediately	$ 77.08
