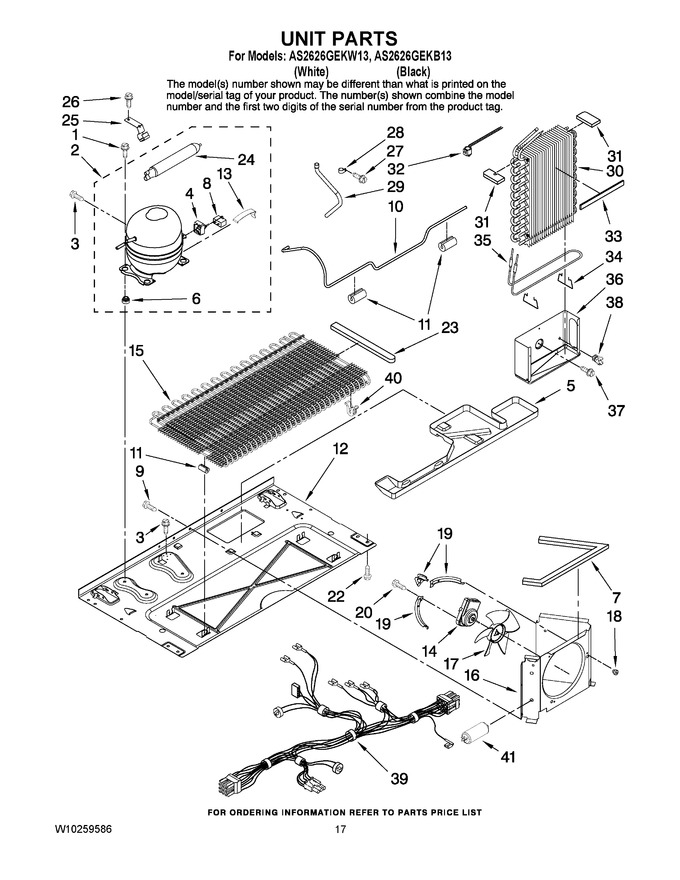

11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12846902		Screw (2)				$ 12.99
2	12049772		Compressor (includes Items 4, 6, 8 & 24)		Appelez-nous	-
3	12992301		Screw (3)   (Replaces: 67006433)				$ 7.32
4	WP2303345		Overload/relay (service)   (Replaces: 2303345)				$ 126.34
4	67006660		Overload/relay With Capacitor (production)		Appelez-nous	-
5	12619103		Pan, Drain				$ 86.81
6	WPW10169124		Grommet (4)   (Replaces: 67003493)			Immediately	$ 7.19
7	WP854334		Seal   (Replaces: 61003210)				$ 13.28
8	WP2201147		Capacitor (production)   (Replaces: 67007162)				$ 128.97
9	67006425		Screw (2)			Immediately	$ 6.95
10	WP12866903		Tube, Discharge   (Replaces: 12866903)			Immediately	$ 133.53
11	67005680		Grommet, Cond (2)				$ 21.05
12	67005889		Pan, Base		Appelez-nous	-
13	67007052		Clip, Capacitor		Appelez-nous	-
14	WPW10246191		Motor, Condenser   (Replaces: W10211284)				$ 302.28
15	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
16	67006661		Shroud, Condenser Fan		Appelez-nous	-
17	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
18	61004743		Grommet, Bracket				$ 5.51
19	WP67004953		Bracket, Motor (3)   (Replaces: 67004953)				$ 68.83
20	WP67004954		Screw (3)   (Replaces: 67004954)				$ 7.79
22	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
23	67002235		Block, Condenser		Appelez-nous	-
24	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
25	10547003		Clip, Drier		Appelez-nous	-
26	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
27	67005332		Screw, Clamp		Appelez-nous	-
28	WP488366		Clamp   (Replaces: 67006700)				$ 11.18
29	12580401		Tube, Drain		Appelez-nous	-
30	12001940		Evaporator				$ 358.87
31	12590102		Block, Air Coil (right)		Appelez-nous	-
31	12590101		Block, Air Coil (left)		Appelez-nous	-
32	12639323SP		Thermostat, Defrost		Appelez-nous	-
33	67002226		Gasket, Foam		Appelez-nous	-
34	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
35	12889905		Heater, Defrost				$ 49.76
36	12558101WD		Tray, Evaporator		Appelez-nous	-
37	WP90767		Screw (2)   (Replaces: 67006838)			Immediately	$ 7.82
38	10623003		Clip, Evaporator		Appelez-nous	-
39	13044710		Heater/harness, Fz		Appelez-nous	-
40	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.34
41	12689303		Filter-line		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
