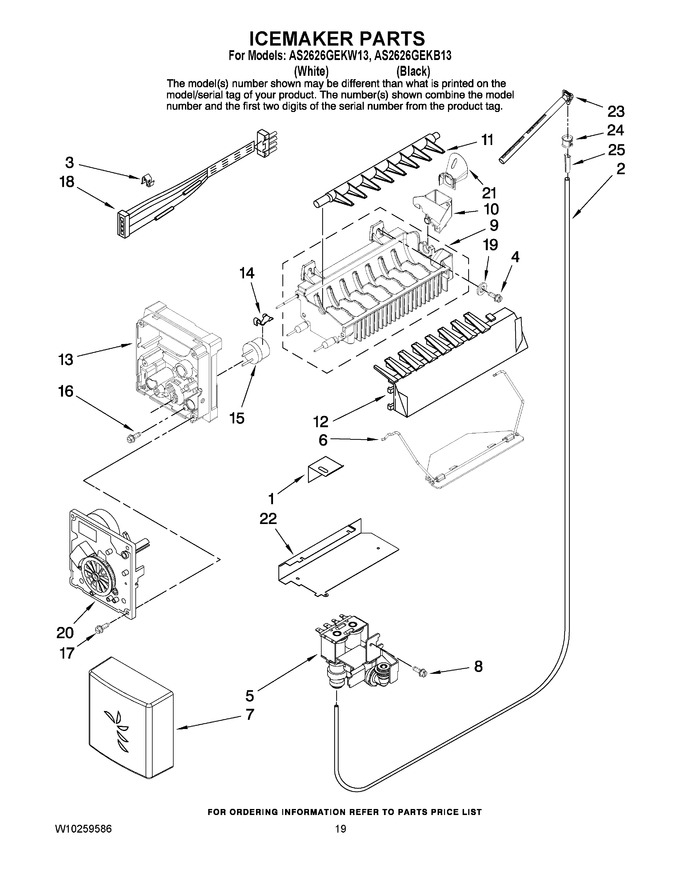

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Icemaker (Replaces: B8391803) |
|
$ 93.00 | |||||
| 2 | W10823511 | Tube, Plastic (Replaces: B5705323) |
|
Immediately | $ 32.41 | ||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | 67006698 | Screw |
|
- | |||||
| 5 | 67002250 | Valve, Water |
|
- | |||||
| 6 | W10152975 | Arm, Shutoff |
|
$ 41.86 | |||||
| 7 | WPW10289690 | Cover (Replaces: 12582501) |
|
Immediately | $ 8.40 | ||||
| 8 | WP489128 | Screw (Replaces: 67006662) |
|
$ 10.88 | |||||
| 9 | W10122523 | Mold & Heater Assembly (also Order 542638 Grease) |
|
- | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 27.77 | |||||
| 11 | WP627843 | Ejector (Replaces: 95101-1) |
|
$ 83.60 | |||||
| 12 | WP2182124 | Stripper, Ice (Replaces: 95102-1) |
|
$ 86.05 | |||||
| 13 | WP2195914 | Support (Replaces: 95103-1) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) |
|
$ 11.05 | |||||
| 15 | WP2321258 | Thermostat (also Order 542369 Cement) (Replaces: 2321258) |
|
$ 98.98 | |||||
| 16 | W10001280 | Screw |
|
- | |||||
| 17 | W10001240 | Screw |
|
$ 8.78 | |||||
| 18 | 12975111 | Harness, Icemaker |
|
- | |||||
| 19 | 67006699 | Washer |
|
- | |||||
| 20 | W10122522 | Module Assembly |
|
- | |||||
| 21 | 12918001 | Funnel, Fill Tube (Replaces: 67005603) |
|
Immediately | $ 12.41 | ||||
| 22 | D7846203 | Shield, Ice Maker |
|
- | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) |
|
Immediately | $ 114.15 | ||||
| 24 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 25 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 100 | WPW10190972 | Icemaker Assembly (Replaces: 67006665) |
|
$ 169.04 |
