SELECT A DIAGRAM

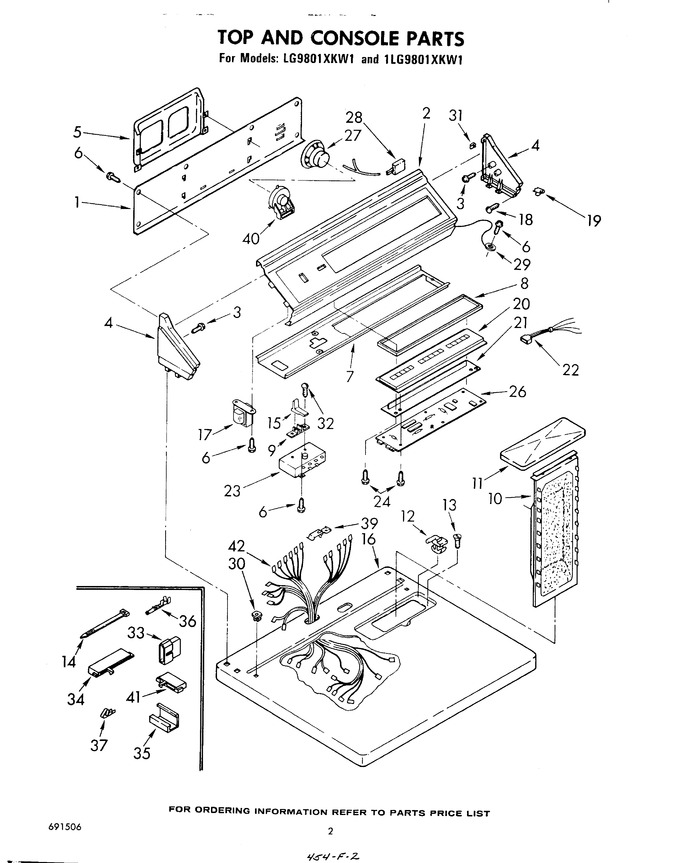

02 - Top And Console , Literature And Optional


03 - Cabinet


04 - Bulkhead


05 - 688637 Burner


06 - 688639 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	690096		Panel, Rear Console		Appelez-nous	-
2	382402		Panel, Control		Appelez-nous	-
3	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
4	375309		End Cap Assembly, L.h. (white)		Appelez-nous	-
4	377282		End Cap Assembly, L.h. (new Avocado)		Appelez-nous	-
4	375316		End Cap Assembly, L.h. (coffee)		Appelez-nous	-
4	375315		End Cap Assembly, L.h. (almond)		Appelez-nous	-
4	375318		End Cap Assembly, L.h. (golden Harvest End Cap Assembly, R.h.)		Appelez-nous	-
4	375317		End Cap Assembly, L.h. (new Avocado)		Appelez-nous	-
4	375314		End Cap Assembly, L.h. (coffee)		Appelez-nous	-
4	375313		End Cap Assembly, L.h. (almond)		Appelez-nous	-
4	375305		End Cap Assembly, L.h. (white)		Appelez-nous	-
4	377283		End Cap Assembly, L.h. (golden Harvest)		Appelez-nous	-
5	357645		Rack, Literature		Appelez-nous	-
6	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
7	690010		Bracket, Control		Appelez-nous	-
8	359787		Trim, Frame		Appelez-nous	-
9	358563		Pivot, Lever		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	689310		Cover, Lint Screen (almond)		Appelez-nous	-
11	689312		Cover, Lint Screen (new Avocado)		Appelez-nous	-
11	689313		Cover, Lint Screen (golden Harvest)		Appelez-nous	-
11	689311		Cover, Lint Screen (coffee)		Appelez-nous	-
11	688150		Cover, Lint Screen (white)		Appelez-nous	-
12	WPW10044470		Hinge, Cover (r.h.)   (Replaces: 339229)				$ 7.72
12	WPW10044480		Hinge, Cover (l.h.)   (Replaces: 339230)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WPW10339879		Wire, Tie   (Replaces: 685963)				$ 7.90
15	358564		Lever		Appelez-nous	-
16	688479		Top (white)		Appelez-nous	-
16	689449		Top (almond)		Appelez-nous	-
16	689450		Top (coffee)		Appelez-nous	-
16	689451		Top (new Avocado)		Appelez-nous	-
16	689452		Top (golden Harvest)		Appelez-nous	-
17	NA		Transformer   (Replaces: 60411)		Appelez-nous	-
18	358225		Screw, 8-18 (2)		Appelez-nous	-
19	358472		Stop, Push-in (2)		Appelez-nous	-
20	691821		Module, Touch		Appelez-nous	-
21	60659		Display Assembly		Appelez-nous	-
22	690092		Harness, Display		Appelez-nous	-
23	690105		Relay, Push-to-start		Appelez-nous	-
24	690756		Screw, 8-18 X 1/2 (6)		Appelez-nous	-
26	60854		Microcomputer Assembly		Appelez-nous	-
27	60336		Speaker		Appelez-nous	-
28	328158		Speaker, Harness		Appelez-nous	-
29	690853		Wire, Ground		Appelez-nous	-
30	358473		Nut, Push-in (2)				$ 5.84
31	689559		Nut, Push-in (4)		Appelez-nous	-
32	WPW10068250		Screw   (Replaces: 358644)				$ 4.07
33	342529		Plug, 4 Conductor		Appelez-nous	-
34	60447		Connector, 9 Circuit		Appelez-nous	-
35	60719		Cap, Strain Relief		Appelez-nous	-
36	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
36	94613		Terminal, (male)		Appelez-nous	-
37	60279		Terminal		Appelez-nous	-
39	357144		Clip, Wire (tech Sheet/top)		Appelez-nous	-
40	359188		Housing, Speaker		Appelez-nous	-
41	60671		Connector, 5 Circuit		Appelez-nous	-
42	690073		Harness, Wiring		Appelez-nous	-
	LIT688898		Guide, Dryer		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
	261890		Golden Harvest		Appelez-nous	-
	261888		New Avocado		Appelez-nous	-
	261886		Coffee		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
	LIT691506		List, Service Parts		Appelez-nous	-
	LIT688644		Instructions, Installation		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	LIT691258		Use & Care Guide		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	799351		Thinner (1 Gal.)		Appelez-nous	-
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
	261887		Xcoffee (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner) Paint, Touch-up		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
