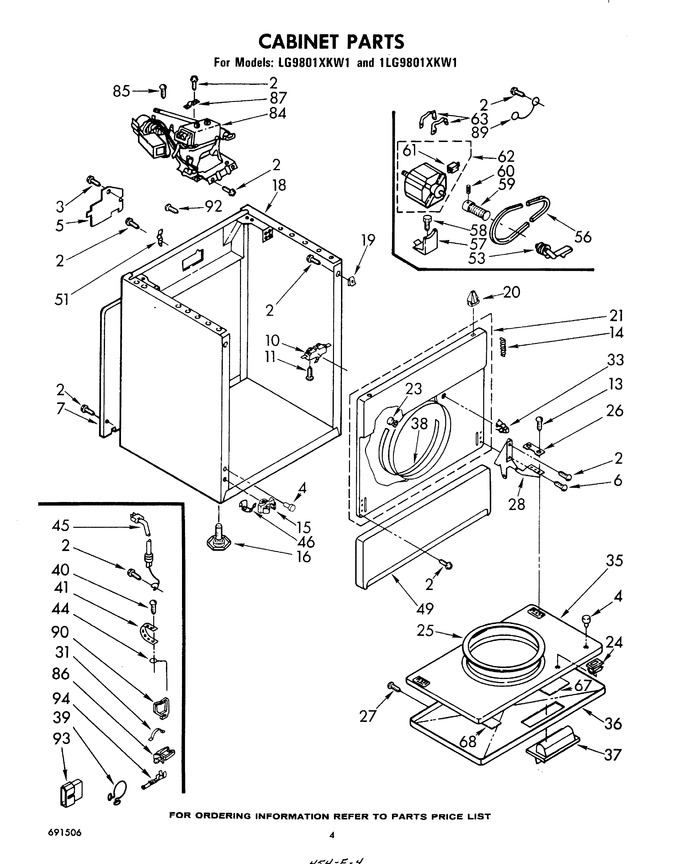

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
4	238614		Bumper				$ 84.79
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
6	342043		Screw, 10-32 X 1/2		Appelez-nous	-
7	348364		Panel, Rear		Appelez-nous	-
10	W10820036		Switch, Door   (Replaces: 687429)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 690921)				$ 7.56
13	WP308685		Screw, 10-12 X 1/2   (Replaces: 98518)			Immediately	$ 7.87
14	237979		Spring, Door (2)		Appelez-nous	-
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
18	690843		Cabinet (coffee)		Appelez-nous	-
18	690845		Cabinet (golden Harvest)		Appelez-nous	-
18	690841		Cabinet (white)		Appelez-nous	-
18	690842		Cabinet (almond)		Appelez-nous	-
18	690844		Cabinet (new Avocado)		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 688904)			Immediately	$ 12.68
21	689337		Upper Front Panel Assembly (golden Harvest)		Appelez-nous	-
21	689335		Panel Assembly, Upper Front (coffee)		Appelez-nous	-
21	689334		Upper Front Panel Assembly (almond)		Appelez-nous	-
21	337969		Upper Front Panel Assembly (white)		Appelez-nous	-
21	689336		Upper Front Panel Assembly (new Avocado)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
25	WP3390733		Seal, Door   (Replaces: 685762)			Immediately	$ 115.98
26	W11252547		Clip, Hinge (2)   (Replaces: 337189)				$ 21.39
27	689791		Screw, 6-18 X 1/2		Appelez-nous	-
28	687905		Hinge, R.h.		Appelez-nous	-
28	687906		Hinge, L.h.		Appelez-nous	-
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
33	279570		Strike, Door   (Replaces: 690082)			Immediately	$ 8.89
35	689260		Door, Rear (new Avocado)		Appelez-nous	-
35	346370		Door, Rear (white)		Appelez-nous	-
35	689258		Door, Rear (almond)		Appelez-nous	-
35	689259		Door, Rear (coffee)		Appelez-nous	-
35	689261		Door, Rear (golden Harvest)		Appelez-nous	-
36	689333		Door, Front (golden Harvest)		Appelez-nous	-
36	348728		Door, Front (white)		Appelez-nous	-
36	689330		Door, Front (almond)		Appelez-nous	-
36	689331		Door, Front (coffee)		Appelez-nous	-
36	00689332		Door, Front (new Avocado)   (Replaces: 689332)				$ 148.03
37	690269		Handle, Door (golden Harvest)		Appelez-nous	-
37	690267		Handle, Door (coffee)		Appelez-nous	-
37	690266		Handle, Door (almond)		Appelez-nous	-
37	WP348721		Handle, Door (white)   (Replaces: 690265)				$ 77.89
37	WP348721		Handle, Door (new Avocado)   (Replaces: 690268)				$ 77.89
38	279264		Seal & Bearing Assembly   (Replaces: 349464)			Immediately	$ 74.52
39	690987		Clamp, Harness		Appelez-nous	-
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Strap, Ground		Appelez-nous	-
44	364089		Wire, Ground		Appelez-nous	-
45	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
46	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.24
49	689247		Panel, Toe (coffee)		Appelez-nous	-
49	689249		Panel, Toe (golden Harvest)		Appelez-nous	-
49	337833		Panel, Toe (white)		Appelez-nous	-
49	689246		Panel, Toe (almond)		Appelez-nous	-
49	689248		Panel, Toe (new Avocado)		Appelez-nous	-
51	WP8066217		Hinge Top   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 688166)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 349533)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	348946		Pulley (includes Illus. 60)		Appelez-nous	-
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch ((use W/689788 Motor))   (Replaces: 349588)			Immediately	$ 191.95
61	279827		Switch (use W/690870 Motor)   (Replaces: 337351)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 689788)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 690870)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (alternate)   (Replaces: 685441)				$ 7.83
63	WP660658		Clamp, Motor (alternate)   (Replaces: 343481)				$ 7.83
67	691207		Filler, Door (large)		Appelez-nous	-
68	691525		Filler, Door (small) (alternate)		Appelez-nous	-
68	691206		Filler, Door Small ((alternate))		Appelez-nous	-
84	W10402145		Kit, Conversion To Type 4 (lpg)   (Replaces: 239072)				$ 108.77
84	688639		Burner Assembly, 60 Hz. (alternate) (refer To Sf-343 For Further Breakdown) (also See Page 8)		Appelez-nous	-
84	279243		Kit, Conversion (type 1 To Type 3)		Appelez-nous	-
84	688637		Burner Assembly, 60 Hz. (alternate) (refer To Sf-343 For Further Breakdown) (also See Page 7)		Appelez-nous	-
85	343826		Screw, Burner Mounting		Appelez-nous	-
86	488946		Clip, Guide   (Replaces: 688167)				$ 21.47
87	341029		Clamp		Appelez-nous	-
89	690236		Wire, Ground		Appelez-nous	-
90	688412		Clip, Harness		Appelez-nous	-
92	WP681414		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 690989)			Immediately	$ 7.85
93	353425		Receptacle, 3-way (use W/94614 Terminal)		Appelez-nous	-
93	353424		Plug, 3-way (use W/94613 Terminal)				$ 18.95
94	94613		Terminal, (male)		Appelez-nous	-
94	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
