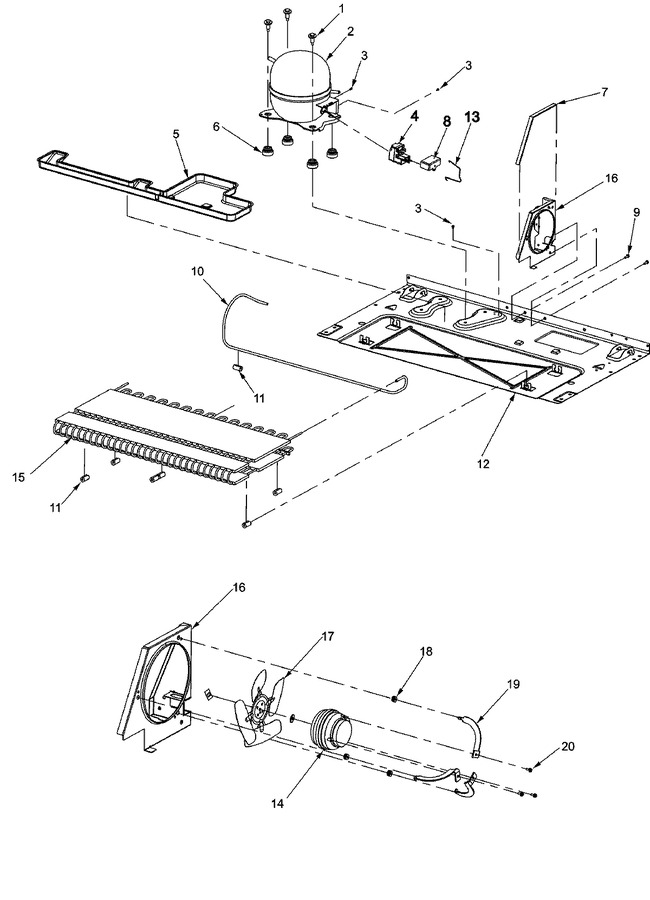

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12846902		Screw, Shoulder   (Replaces: 67003790)	10			$ 12.99
2	W10309997		Compressor Kit   (Replaces: 12002637)	10			$ 556.12
3	12992301		Screw, Tf   (Replaces: M0231604)	10			$ 7.32
4	W10848274		Overload/relay   (Replaces: 67004815)	10			$ 177.00
5	67004744		Pan, Drain	10	Appelez-nous	-
6	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	10		Immediately	$ 7.19
7	WP854334		Seal   (Replaces: 61003210)	10			$ 13.28
8	WP2201147		Capacitor   (Replaces: 67002815)	10			$ 128.97
9	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
10	WP12866903		Tube, Discharge   (Replaces: 67004700)	10		Immediately	$ 133.53
11	67005680		Grommet, Condenser	10			$ 21.05
12	67005889		Pan, Base	10	Appelez-nous	-
13	67004687		Strap, Bale	10	Appelez-nous	-
14	67005104		Motor, Condenser Fan	10	Appelez-nous	-
15	67002235		Block-eps Cond	10	Appelez-nous	-
15	WP67006131		Condenser X   (Replaces: 67004682)	10			$ 366.74
16	12687101		Shroud, Condenser	10	Appelez-nous	-
17	WP12587601		Blade, Cond Fan   (Replaces: 12587601)	10			$ 126.67
18	61004743		Grommet, Bracket	10			$ 5.51
19	67003354		Bracket, Condenser Motor	10	Appelez-nous	-
20	M0223816		Screw, Tr	10			$ 5.27
NI	67005062		Filter, Line	10	Appelez-nous	-
NI	67005796		Harness, Mc	10	Appelez-nous	-
