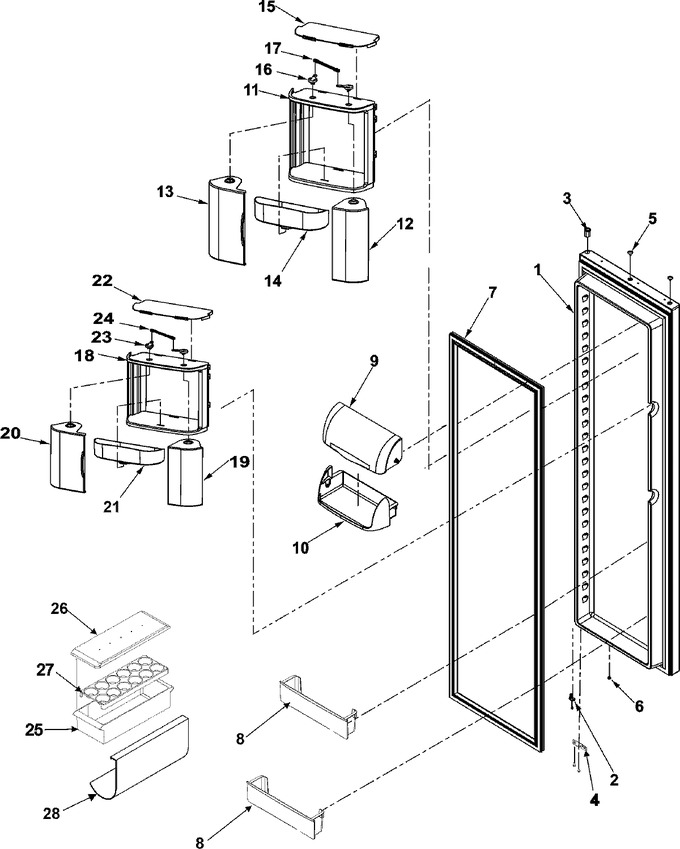

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67005197 | Door Assy., Ref. Foam (blk) | 10 |
|
- | ||||
| 2 | WP8281227 | Screw, Tc (Replaces: M0220432) | 10 |
|
$ 10.44 | ||||
| 2 | R0181181 | Kit,dr Closure--w | 10 |
|
Immediately | $ 7.19 | |||
| 3 | 67004976 | Bushing, Door (blk) | 10 |
|
- | ||||
| 4 | 12636401B | Stop, Door (blk) | 10 |
|
$ 10.80 | ||||
| 4 | WP98165 | Screw, Sm (Replaces: M0211018) | 10 |
|
$ 8.00 | ||||
| 5 | M0311604 | Plug, Button (blk) | 10 |
|
- | ||||
| 6 | A3080001 | Plug, Button (blk) | 10 |
|
- | ||||
| 7 | W10840101 | Gasket, Ref. Door (blk) (Replaces: 67003965) | 10 |
|
$ 311.67 | ||||
| 8 | 67004314 | Bucket, Refrigerator Door | 10 |
|
- | ||||
| 9 | 67002957 | Door, Dairy | 10 |
|
- | ||||
| 10 | 67002304 | Tray, Dairy | 10 |
|
- | ||||
| 11 | 67002294 | Frame, Large Chiller | 10 |
|
- | ||||
| 12 | 67002297 | Door, Large Chiller (rt) | 10 |
|
- | ||||
| 13 | 67004268 | Door, Chiller | 10 |
|
- | ||||
| 14 | 67002296 | Tray, Chiller | 10 |
|
$ 26.66 | ||||
| 15 | 67002291 | Cover, Chiller | 10 |
|
- | ||||
| 16 | 67002293 | Linkage, Chiller | 10 |
|
$ 11.76 | ||||
| 17 | 67002292 | Linkage, Ctr Chiller | 10 |
|
- | ||||
| 18 | 67002409 | Frame, Mini Chiller | 10 |
|
- | ||||
| 19 | 67002411 | Door, Mini Chiller (rt) | 10 |
|
- | ||||
| 20 | 67004269 | Door, Mini Chiller | 10 |
|
- | ||||
| 21 | 67002296 | Tray, Chiller | 10 |
|
$ 26.66 | ||||
| 22 | 67002291 | Cover, Chiller | 10 |
|
- | ||||
| 23 | 67002293 | Linkage, Chiller | 10 |
|
$ 11.76 | ||||
| 24 | 67002292 | Linkage, Ctr Chiller | 10 |
|
- | ||||
| 25 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 26 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 27 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 28 | 10448903 | Rack, Bottle | 10 |
|
- |
