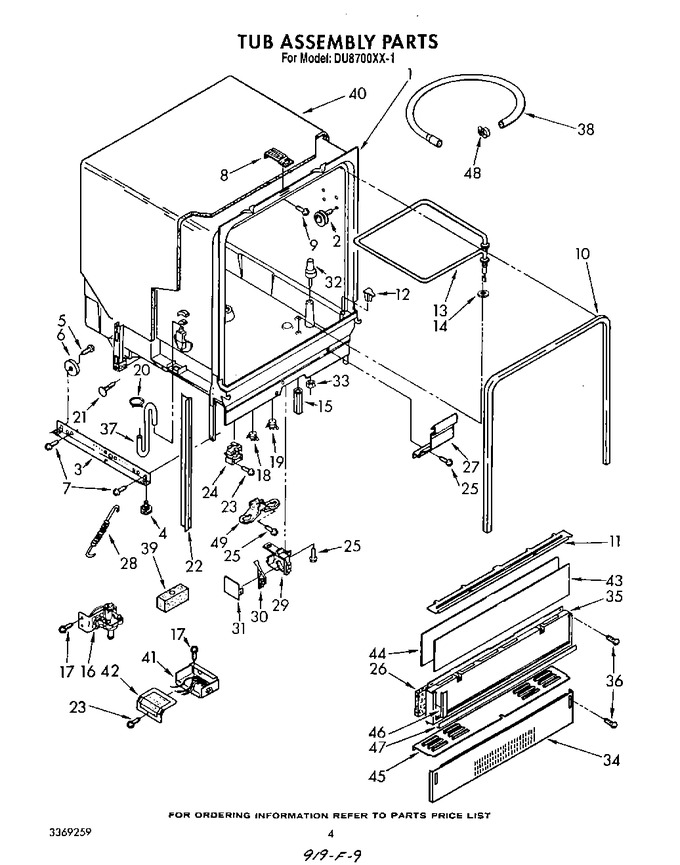

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3370851		Tub Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 302849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	3368965		Plate, Latch		Appelez-nous	-
9	3368919		Screw, 8-32		Appelez-nous	-
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 74.12
11	WP3372412		Retainer, Access Panel   (Replaces: 3369511)				$ 104.59
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	3369416		Heater		Appelez-nous	-
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3369868		Water Valve		Appelez-nous	-
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
18	WP661566		Thermostat, Hi-limit   (Replaces: 3370783)			Immediately	$ 31.28
19	3369778		Thermostat		Appelez-nous	-
20	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
21	WP304666		Push Retainer   (Replaces: 304666)				$ 29.45
22	3369775		Retainer, Shield		Appelez-nous	-
23	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 8.25
24	3369447		Relay				$ 52.29
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
26	3369617		Sound Shield		Appelez-nous	-
27	3368983		Shield, Harness		Appelez-nous	-
28	3369337		Spring & Bearing Assembly (2)		Appelez-nous	-
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP3376397		Float   (Replaces: 3369451)				$ 108.64
33	717488		Nut				$ 12.83
34	3369831		Toe Panel		Appelez-nous	-
35	WP3369193		Panel, Access   (Replaces: 3369193)				$ 171.61
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
38	675544		Hose, Drain   (Replaces: 304626)			Immediately	$ 155.51
39	3369317		Diverter		Appelez-nous	-
40	3369771		Sound Shield		Appelez-nous	-
41	3369332		Terminal Block & Plug Assembly		Appelez-nous	-
42	3369357		Cover Assembly, Terminal Box		Appelez-nous	-
43	3369527		Access Panel (almond/black)		Appelez-nous	-
44	3369526		Spacer, Corrugated				$ 25.23
45	3369531		Extension		Appelez-nous	-
46	3369593		Trim, Side (2)		Appelez-nous	-
47	3369588		Trim, Bottom		Appelez-nous	-
48	WP3367052		Hose Clamp   (Replaces: 3367052)				$ 9.10
49	3370555		Bracket, Thermostat		Appelez-nous	-
