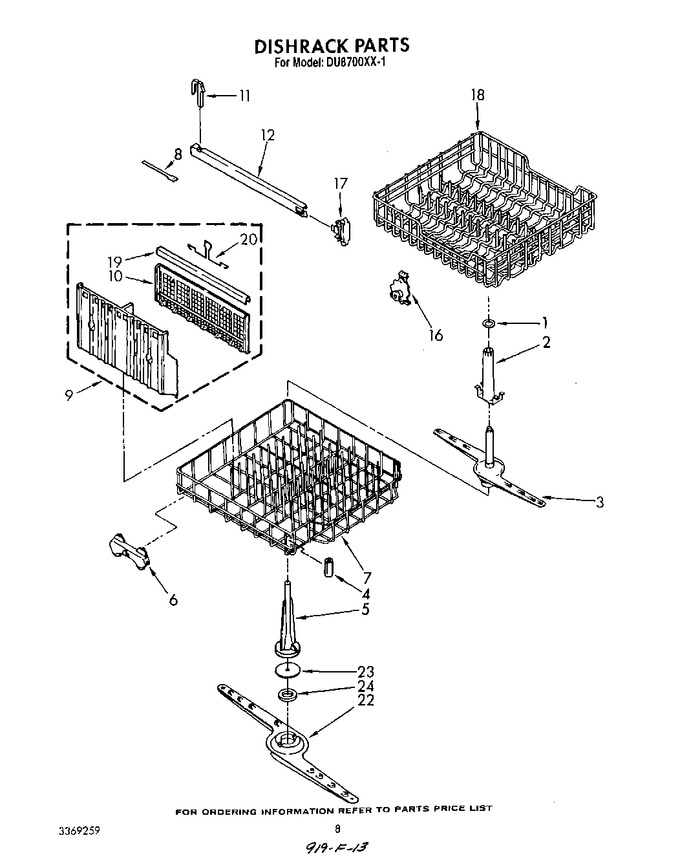

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303722		Clip				$ 5.75
2	3367070		Support, Arm		Appelez-nous	-
3	3367067		Spray Arm, Upper		Appelez-nous	-
4	304490		Bumper (2)		Appelez-nous	-
5	304170		Tower, Pressure				$ 72.38
6	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3369509)				$ 98.69
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 3368516)			Immediately	$ 188.14
8	3370075		Clip, Strap		Appelez-nous	-
9	3369492		Silverware Basket Assembly		Appelez-nous	-
10	3369489		Cover, Basket		Appelez-nous	-
11	3369046		Stop, Track (2)		Appelez-nous	-
12	3369071		Track		Appelez-nous	-
16	3368663		Adjuster Assy.		Appelez-nous	-
17	300845		End Cap				$ 7.63
18	W11169039		Dishrack, Upper   (Replaces: 3368889)			Immediately	$ 203.14
19	717528		Trim, Basket		Appelez-nous	-
20	300086		Handle, Basket		Appelez-nous	-
22	3369347		Sprayarm, Lower		Appelez-nous	-
23	3367910		Cap, Nozzle				$ 39.70
24	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
24	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
24	350942		Primer (white)   (Replaces: 206922)				$ 94.14
24	350941		Leveler (thinner)		Appelez-nous	-
24	978883		Almond (uncut)		Appelez-nous	-
24	799340		Black (uncut)		Appelez-nous	-
24	675476		Vinyl Touch Up (blue)		Appelez-nous	-
24	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
24	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
24	719576		Bearing, Nozzle				$ 7.48
24	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
24	285006		Paint, Spray 13 Oz. (black)				$ 59.89
	LIT3370388		Energy Guide		Appelez-nous	-
	LIT3369259		Parts List		Appelez-nous	-
	LIT3370467		Wiring Diagram		Appelez-nous	-
	LIT3369671		Instructions, Installation		Appelez-nous	-
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	LIT3369105		Guide, Use & Care		Appelez-nous	-
