SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

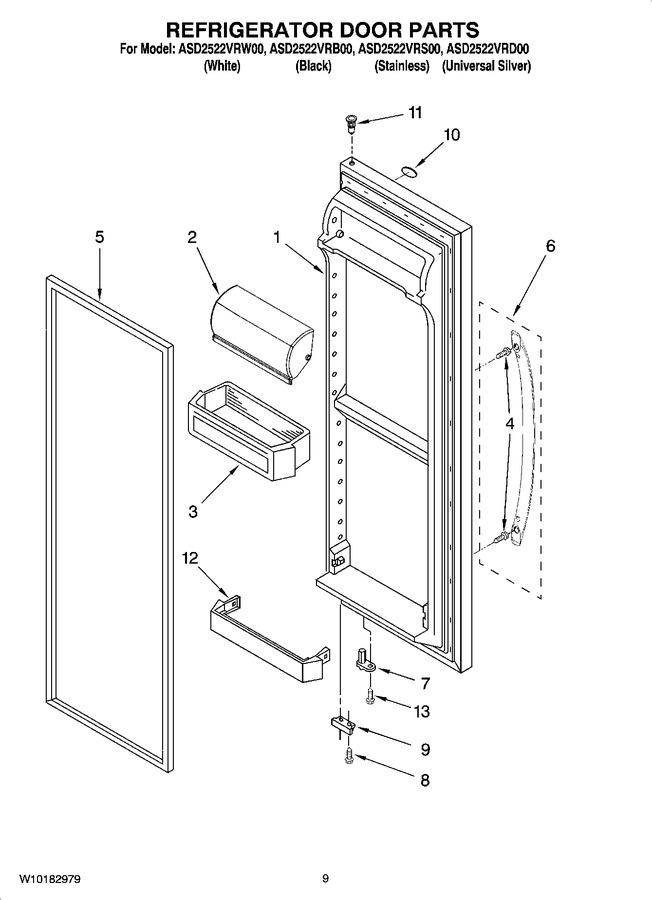

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10173663		Refrigerator Door (includes Item 6) (universal Silver)		Appelez-nous	-
1	W10169868		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10171245		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
1	W10169867		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP2187172		Door Bin (3)   (Replaces: 2187172K)			Immediately	$ 45.09
4	WPW10288153		Screw, Handle   (Replaces: 2326016)			Immediately	$ 8.69
5	2159083		Door Gasket, Magnetic (repair) (black)   (Replaces: 2221313)				$ 251.49
5	2159075		Door Gasket, Magnetic (repair) (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
6	W10119663		Handle Assy (white)				$ 75.72
6	W10119665		Handle Assy (black)				$ 75.66
7	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
8	WP489483		Screw   (Replaces: 489420)				$ 10.87
9	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
9	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
10	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
12	WP2177962K		Trivet   (Replaces: 2177962K)				$ 81.09
13	WP3400012		Screw   (Replaces: 3400012)				$ 7.82

    View Diagram in Separate Window       Print Part List
