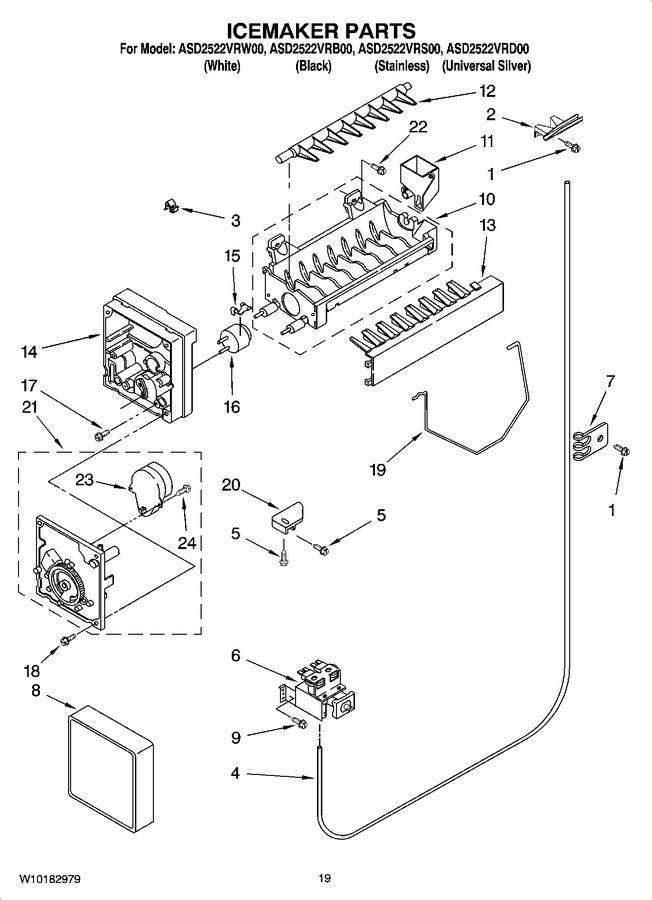

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 35.32 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 32.41 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 6 | W10408179 | Filter Valve Asm (Replaces: 2315534) |
|
Immediately | $ 96.38 | ||||
| 7 | WP488366 | Tube Clip (Replaces: 2208136) |
|
$ 11.92 | |||||
| 8 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.82 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 10 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 11 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 29.16 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 13 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 90.35 | |||||
| 14 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 15 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 16 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 17 | 8533917 | Screw |
|
$ 14.04 | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 63.21 | ||||
| 20 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 21 | 8201515 | Module Assembly (includes Items 23 And 24) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 22 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 23 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 141.64 | ||||
| 24 | 489136 | Screw |
|
$ 10.80 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350930 | Enamel, White (12 Oz. Spray Can) |
|
Immediately | $ 40.12 | |||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | ||||||
| 4210463RW | Coil Brush (Replaces: 8129) |
|
Immediately | $ 29.82 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. X 3`` X 24``x 48``) |
|
$ 243.14 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 876029 | Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``) |
|
- | ||||||
| 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 51.75 | ||||||
| 606755 | Bag, Insulation(36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 12.30 | |||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| NI | WPW10190965 | Complete Icemaker Assembly (Replaces: W10122507) |
|
Immediately | $ 105.08 |
