SELECT A DIAGRAM

01 - Cabinet Parts

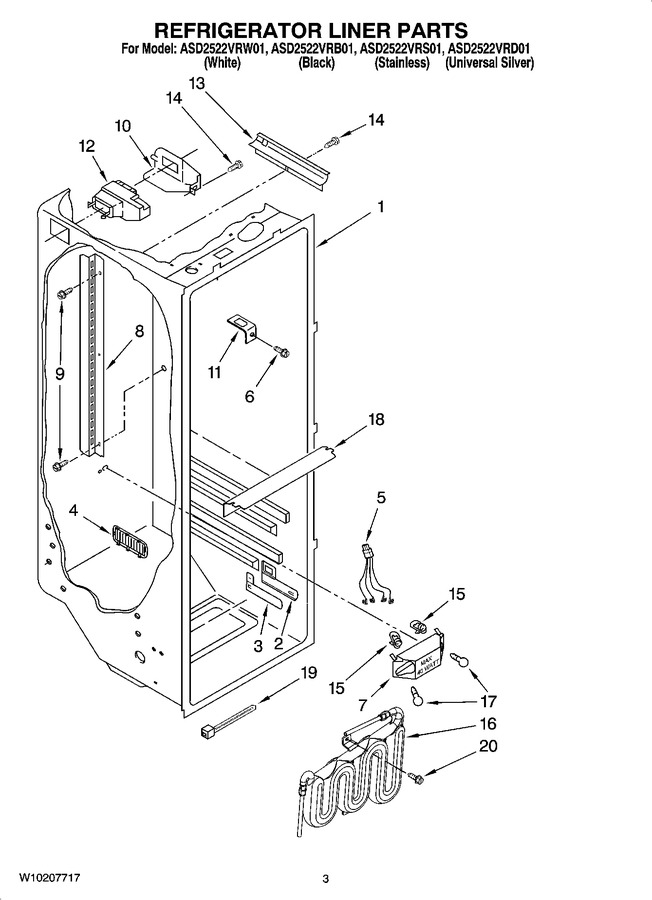

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2311637		Wire Harness, Dual Crisper				$ 140.23
6	WP488488		Screw (2)   (Replaces: 489290)				$ 7.68
7	2256035		Bracket, Dual Crisper Light				$ 62.54
8	2319866		Shelf Ladder				$ 22.16
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	2152019		Air Diffuser Cover				$ 86.03
11	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
12	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 99.78
13	2150331		Cover, Conduit				$ 24.40
14	W10759522		Screw   (Replaces: W10004810)				$ 7.75
15	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
17	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
18	2209769		Light Lens		Appelez-nous	-
19	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
20	488280		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
