SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Unit Parts
09 - Unit Parts

Diagram for 10 - Air Flow Parts
10 - Air Flow Parts

Diagram for 11 - Control Parts
11 - Control Parts

Diagram for 12 - Icemaker Parts, Optional Parts (not Included)
12 - Icemaker Parts, Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10141749 Shelf, Cantilever Appelez-nous -
2 W10508993 Cover, Crisper   (Replaces: 2209698) Special Order $ 291.29

3 W10864399 Glass Cover   (Replaces: 2179259) Special Order $ 220.98

4 2179350 Deflector Special Order $ 81.80

5 W10508993 Cover, Meat Pan   (Replaces: 2311726) Special Order $ 291.29

6 WP2188661 Crisper Pan   (Replaces: 2188661) In-Stock Immediately $ 162.07

7 WP2188664 Meat Pan   (Replaces: 2188665) In-Stock Immediately $ 85.30

8 W11223328 Stud Assembly   (Replaces: 2196485) In-Stock Immediately $ 14.07

9 WP3-24004-109 Screw   (Replaces: 3400894) Special Order $ 8.05

10 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 10.35

11 WP3400806 Screw   (Replaces: 8281158) Special Order $ 7.71

12 W10141752 Glass, Cover Special Order $ 80.83


    View Diagram in Separate Window     Print Icon   Print Part List

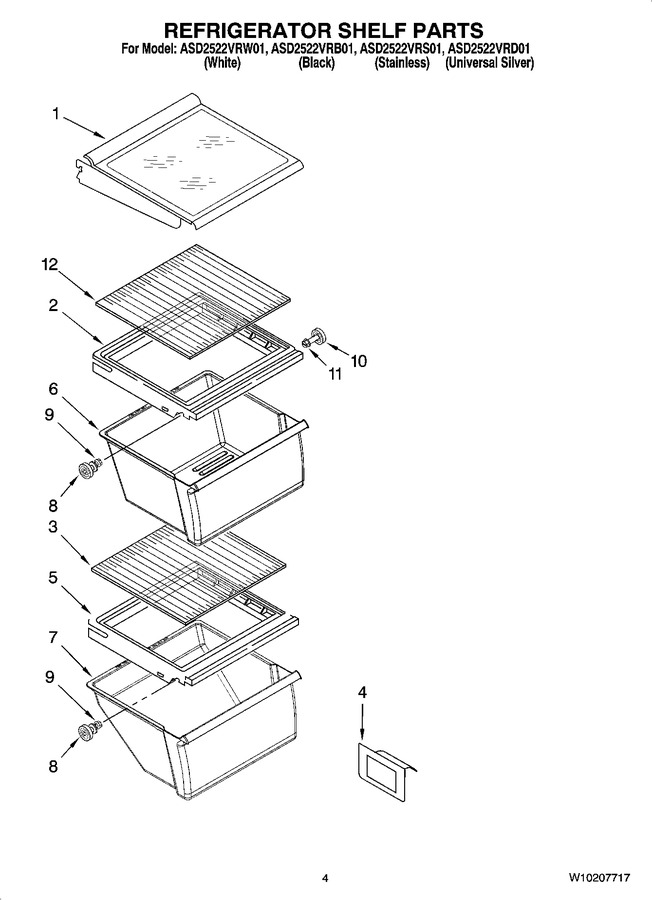

Diagram for ASD2522VRS01
