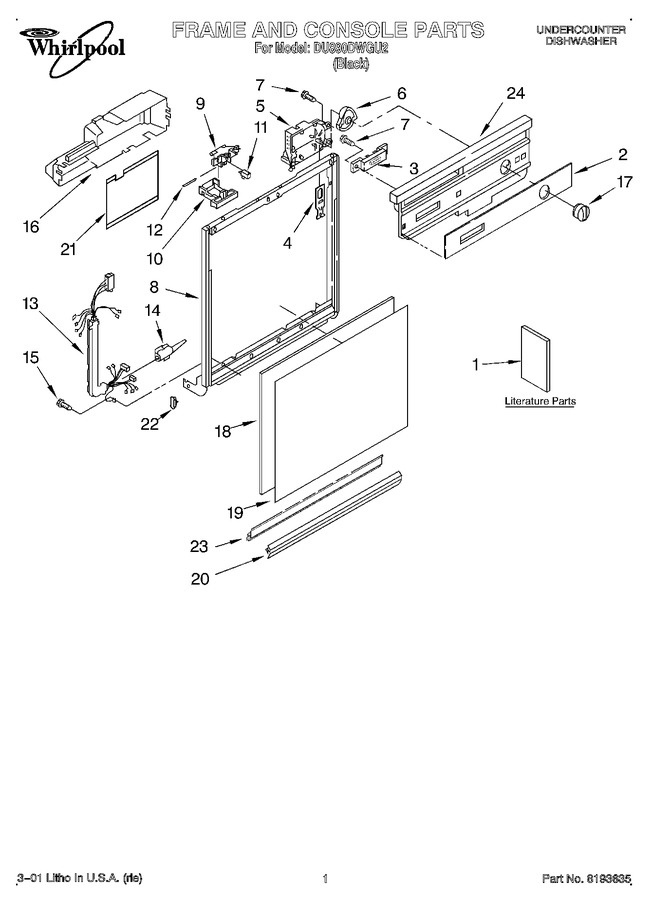

01 - Frame And Console, Literature


02 - Inner Door


03 - Tub Assembly


04 - Pump And Sprayarm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT08274744		Guide, Energy		Appelez-nous	-
1	LIT08051229		Instructions, Installation		Appelez-nous	-
1	LIT03367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
1	LIT00677967		D0-it Yourself Manual		Appelez-nous	-
1	LIT08051219		Guide, Use & Care		Appelez-nous	-
1	LIT08051173		Diagram, Wiring		Appelez-nous	-
2	8051330		Insert, Console (black)		Appelez-nous	-
3	8051156		Switch, 6 Button (black)		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535368		Timer   (Replaces: 3376032)				$ 345.30
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 23) (black)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8271443		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	3379954		Cover, Timer		Appelez-nous	-
17	3375348		Knob, Timer (black)				$ 64.33
18	3368979		Spacer				$ 38.99
19	WP3369769		Front Panel (white/biscuit)   (Replaces: 8274853)				$ 59.42
19	WP3369769		Front Panel (almond/black)   (Replaces: 3369516)				$ 59.42
20	3374010		Retainer, Panel (black)				$ 40.68
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
23	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
24	8051474		Console (includes Item 2) (black)		Appelez-nous	-
