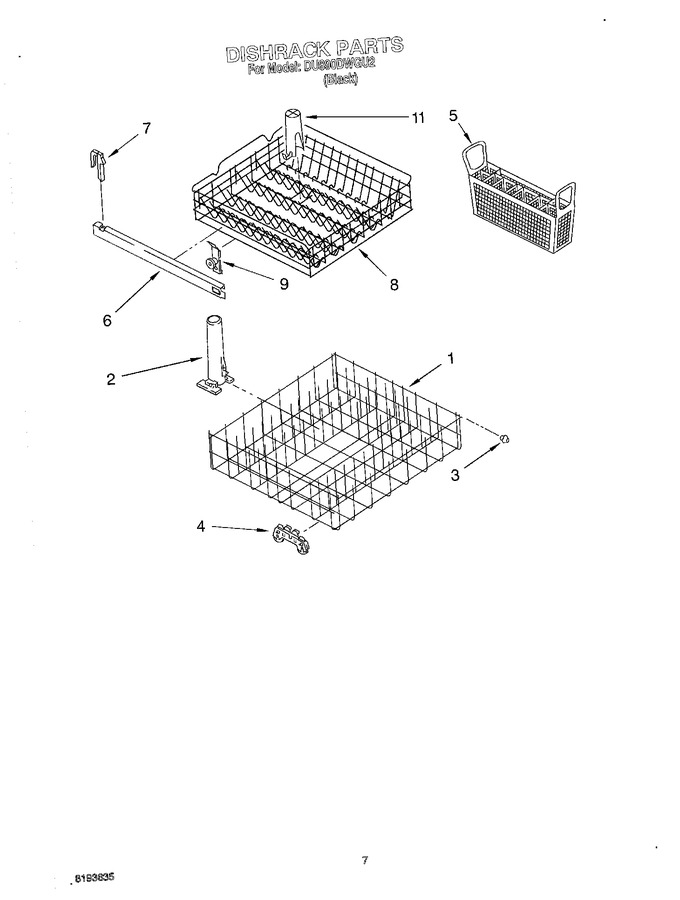

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161215 | Dishrack, Lower Assembly (Replaces: 8519578) |
|
$ 173.46 | |||||
| 2 | WP8268825 | Tower, Protector (Replaces: 8268825) |
|
$ 103.71 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 8268863) |
|
$ 90.30 | |||||
| 4 | WP8268645 | Wheel & Transport Assembly (4) (Replaces: 8268820) |
|
Immediately | $ 62.31 | ||||
| 5 | WP8268866 | Basket, Silverware (Replaces: 8268866) |
|
Immediately | $ 84.18 | ||||
| 6 | WP3385089 | Track, Dishrack (2) (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 7 | 3379941 | Stop, Track (4) |
|
$ 42.08 | |||||
| 8 | W11169039 | Dishrack, Upper (Replaces: 8519572) |
|
Immediately | $ 203.14 | ||||
| 9 | WPW10204131 | Wheel Assembly, 3 Position (Replaces: 8268852) |
|
Immediately | $ 9.16 | ||||
| 11 | 8519550 | Diffuser, Water |
|
$ 51.36 |
