SELECT A DIAGRAM

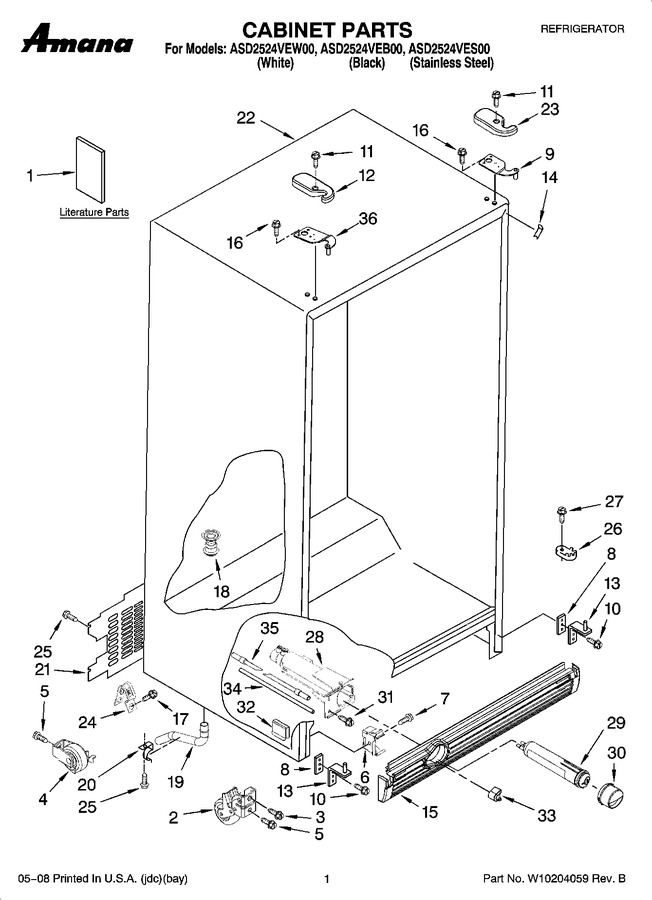

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10162456		Owner`s Manual		Appelez-nous	-
1	W10168294		Instruction Sheet (door Removal)		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10180856		Service & Wiring Sheet		Appelez-nous	-
1	W10194140		Energy Guide		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Rear Roller (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	WP2181911		Shim   (Replaces: 2156056)				$ 33.21
9	WP2203771		Hinge Top, Rc   (Replaces: 2203771)				$ 98.22
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	W10138577		Hinge Cover (fc) (black)				$ 34.45
12	W10138576		Hinge Cover (fc) (white)		Appelez-nous	-
13	2303141		Hinge Bottom (fc)				$ 248.57
13	W10138965		Hinge Bottom (rc)				$ 89.44
14	2304848		Filler, Wrapper (black)		Appelez-nous	-
14	2304846		Filler, Wrapper (white)		Appelez-nous	-
15	W10184886		Grille (white)				$ 67.61
15	WPW10184888		Grille (black)   (Replaces: W10184888)				$ 209.51
16	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	W11512417		Extension Tube   (Replaces: 2304937)				$ 34.79
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
21	WP2188755		Cover, Unit   (Replaces: 2188739)				$ 135.91
23	W10138581		Hinge Cover (rc) (white)		Appelez-nous	-
23	W10138582		Hinge Cover (rc) (black)				$ 34.30
24	549193		Clamp, Service Cord				$ 13.39
25	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
26	WPW10329686		Door Closer, Rc   (Replaces: 2155311)			Immediately	$ 5.43
26	W11778262		Door Closer, Fc   (Replaces: 2223751)				$ 11.08
27	WP489483		Screw   (Replaces: 489483)				$ 10.87
28	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 112.91
29	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	2260519		Block, Housing Support		Appelez-nous	-
33	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
33	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 115.54
35	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 77.02
36	WP2203770		Hinge, Top Fc   (Replaces: 2203770)				$ 95.52

    View Diagram in Separate Window       Print Part List
