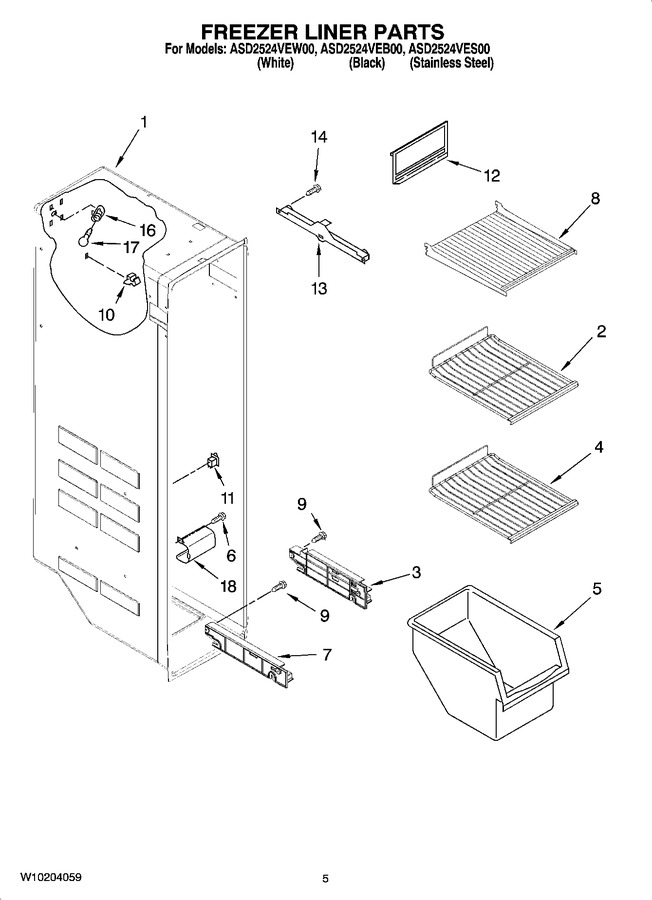

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2171714K		Shelf, Slide Out Upper		Appelez-nous	-
3	2261449		Track, Basket-dual (right)				$ 46.07
3	2261448		Track, Basket-dual (left)				$ 46.07
4	2174268K		Shelf, Slide Out		Appelez-nous	-
5	WP2182971		Freezer Bin   (Replaces: 2182971)				$ 147.22
6	W10142289		Screw   (Replaces: 3400893)				$ 9.61
7	2301290		Shelf Track (left Side)				$ 134.88
7	2301289		Shelf Track (right Side)				$ 86.80
8	2205837K		Shelf (2)				$ 42.67
9	W10759522		Screw (8)   (Replaces: W10004810)				$ 8.24
10	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
11	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
12	WP2171713		Door, Ice Comp   (Replaces: 2171713K)				$ 91.63
13	W10845583		Slide, Ice Maker Mounting (right Side)   (Replaces: 1119293)				$ 130.12
13	W10845585		Slide, Ice Maker Mounting (left Side)   (Replaces: 1119237)				$ 139.41
14	WP489478		Screw   (Replaces: 489478)				$ 8.18
16	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
17	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
18	2171705		Light Lens				$ 94.68
