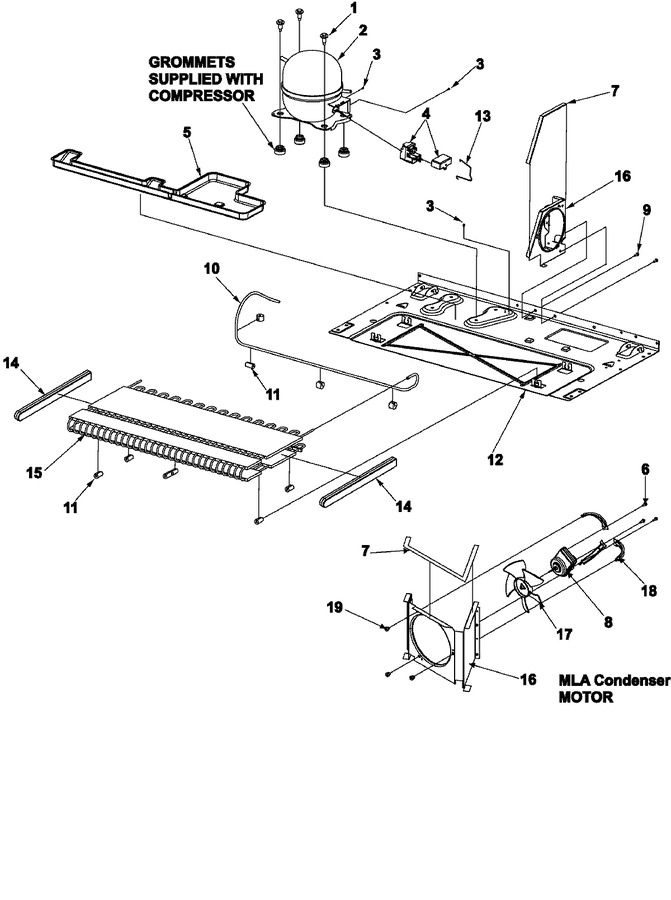

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12846902		Screw, Shoulder   (Replaces: 67006432)	50			$ 12.99
2	W10309990		Compressor-tpg1380y (sxs)   (Replaces: 67005563)	50		Immediately	$ 632.81
3	12992301		Screw   (Replaces: 67006433)	50			$ 7.32
4	W10613606		Overload/relay W/capacitor   (Replaces: 67005560)	50		Immediately	$ 86.59
5	67004848		Pan, Drain	50	Appelez-nous	-
6	WP67004954		Screw   (Replaces: 67004954)	50			$ 7.79
7	WP854334		Seal   (Replaces: 61003210)	50			$ 13.28
8	W11613295		Motor, Condenser Fan   (Replaces: 67004432)	50		Immediately	$ 136.84
9	67006425		Screw, Sm	50		Immediately	$ 6.95
10	WP12866903		Tube, Discharge   (Replaces: 67004700)	50		Immediately	$ 133.53
11	67005680		Grommet, Condenser	50			$ 21.05
12	67005889		Pan, Base	50	Appelez-nous	-
13	12576801		Strap, Bale	50	Appelez-nous	-
14	67002235		Block-eps Cond	50	Appelez-nous	-
15	WP67006131		Condenser   (Replaces: 67006131)	50			$ 366.74
16	67001090		Shroud, Condenser Fan	50	Appelez-nous	-
17	W10156818		Blade, Cond Fan   (Replaces: 67004952)	50		Immediately	$ 62.11
18	67004955		Harness, Mc	50	Appelez-nous	-
18	WP67004953		Bracket, Cond Motor   (Replaces: 67004953)	50			$ 68.83
19	61004743		Grommet, Bracket	50			$ 5.51
