SELECT A DIAGRAM

Diagram for 01 - Cabinet Back
01 - Cabinet Back

Diagram for 02 - Compressor
02 - Compressor

Diagram for 03 - Controls
03 - Controls

Diagram for 04 - Crisper Assy & Ref Shelf
04 - Crisper Assy & Ref Shelf

Diagram for 05 - Evap Fan Assy And Lights
05 - Evap Fan Assy And Lights

Diagram for 06 - Evaporator Assy And Rollers
06 - Evaporator Assy And Rollers

Diagram for 07 - Freezer Door
07 - Freezer Door

Diagram for 08 - Fz Door And Facade
08 - Fz Door And Facade

Diagram for 09 - Fz Shelf
09 - Fz Shelf

Diagram for 10 - Handles
10 - Handles

Diagram for 11 - Hinges
11 - Hinges

Diagram for 12 - Ice Bucket Assy
12 - Ice Bucket Assy

Diagram for 13 - Ice Maker
13 - Ice Maker

Diagram for 14 - Light Covers And Toe Grille
14 - Light Covers And Toe Grille

Diagram for 15 - Lights And Ice Maker
15 - Lights And Ice Maker

Diagram for 16 - Refrigerator Door
16 - Refrigerator Door

No Diagram Image Available
17 - Supplemental Information

Diagram for 18 - Wiring Information
18 - Wiring Information


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10119668 Handle Assy., Door (blk)x   (Replaces: 67006462) 50 Special Order $ 189.04

2 67006461 Handle Assy., Door (blk) 50 Appelez-nous -
3 WP67006197 Screw,hi/lo   (Replaces: 12990202) 50 Special Order $ 8.06


    View Diagram in Separate Window     Print Icon   Print Part List

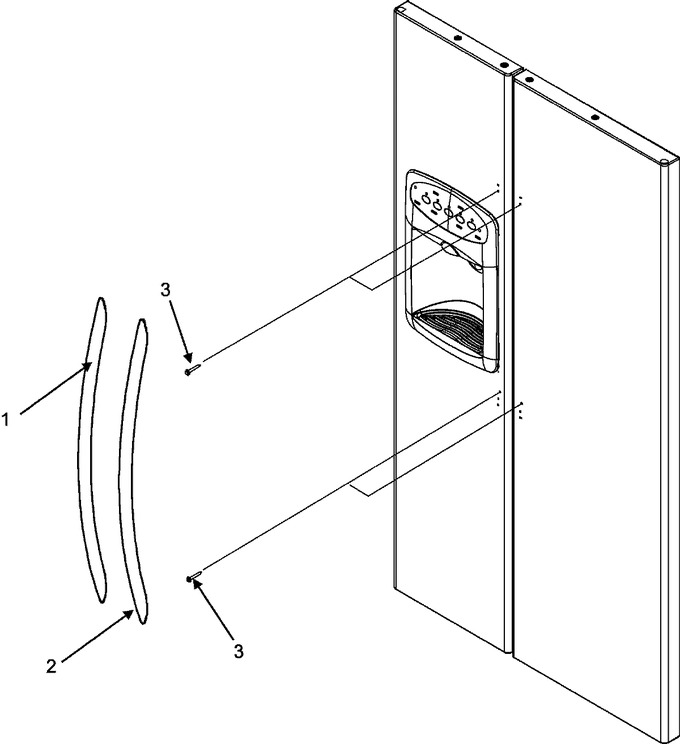

Diagram for ASD2621KRZ
